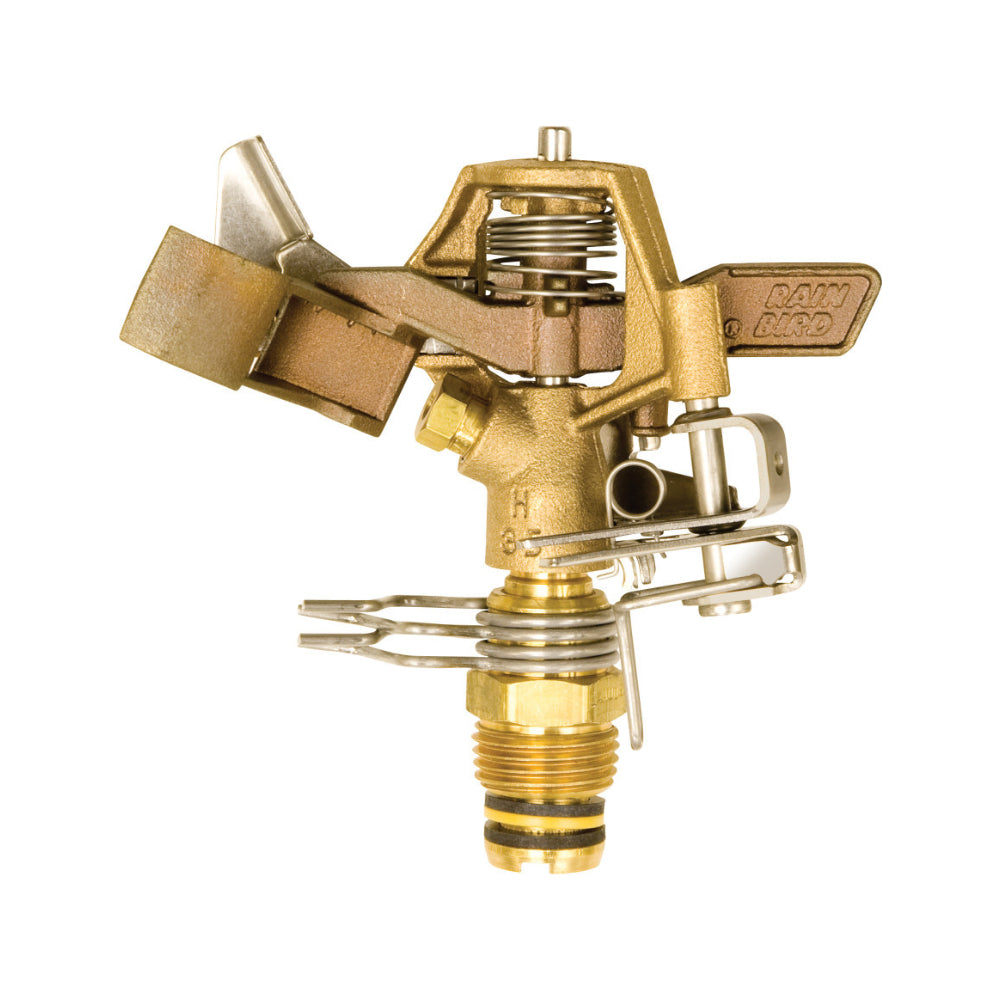

Rain Bird Brass Impact Sprinklers

From the company that invented the first impact sprinkler comes a full line of rugged impacts for every application.
In long-lasting brass and stainless steel, in full- or part-circle models, Rain Bird impacts keep landscapes lush and green all year long.

About Rain Bird Brass Impact Sprinklers

20ADJB

* Precipitation Rate: 0.16 to 0.39 inches per hour (4 to 10 mm/h)

* Radius: 38 to 41 feet (11,6 to 12,5 m)

* Pressure: 30 to 70 psi (2,1 to 4,8 Bars)

* Flow: 2.4 to 5.9 GPM (0,54 to 1,34 m3/h; 0,15 to 0,37 l/s)

* 1/2" (15/21) male threaded inlet.

* For 10 nozzle at normal operating pressure, the highest point of stream is 7 feet (2,1 m) above nozzle.

* Nozzles: 08, 09, 10.

25BPJ-ADJ Series

* Precipitation Rate: 0.41 to 0.66 inches per hour (10 to 17 mm/h)

* Radius: 38 to 41 feet (11,6 to 12,5 m)

* Pressure: 30 to 50 psi (2,1 to 3,5 Bars)

* Flow: 3.1 to 5.0 GPM (0,70 to 1,14 m3/h; 0,20 to 0,32 l/s)

* 1/2" (15/21) male threaded inlet

* Nozzle outlet trajectory: 25°

* Nozzles: 09, 10

35A-TNT Series

* Precipitation Rate: 0.43 to 0.67 inches per hour (11 to 17 mm/h)

* Radius: 42 to 51 feet (12,8 to 15,6 m)

* Pressure: 30 to 60 psi (2,1 to 4,1 Bars)

* Flow: 3.9 to 7.8 GPM (0,89 to 1,77 m3/h; 0,25 to 0,49 l/s)

* 3/4" (20/27) male threaded inlet

* Nozzle outlet trajectory: 27°

65PJADJ-TNT

* Precipitation Rate: 0.76 to 0.94 inches per hour (19 to 23 mm/h)

* Radius: 57 to 65 feet (17,4 to 19,8 m)

* Pressure: 50 to 80 psi (3,5 to 5,5 Bars)

* Flow: 12.9 to 16.5 GPM (2,93 to 3,75 m3/h; 0,81 to 1,04 l/s)

* 1" (26/34) female NPT or BSP threaded inlet

* For standard nozzle at normal operating pressure, the highest point of stream is 10 feet (3,1 m) above nozzle

* Nozzle outlet trajectory: 27°
