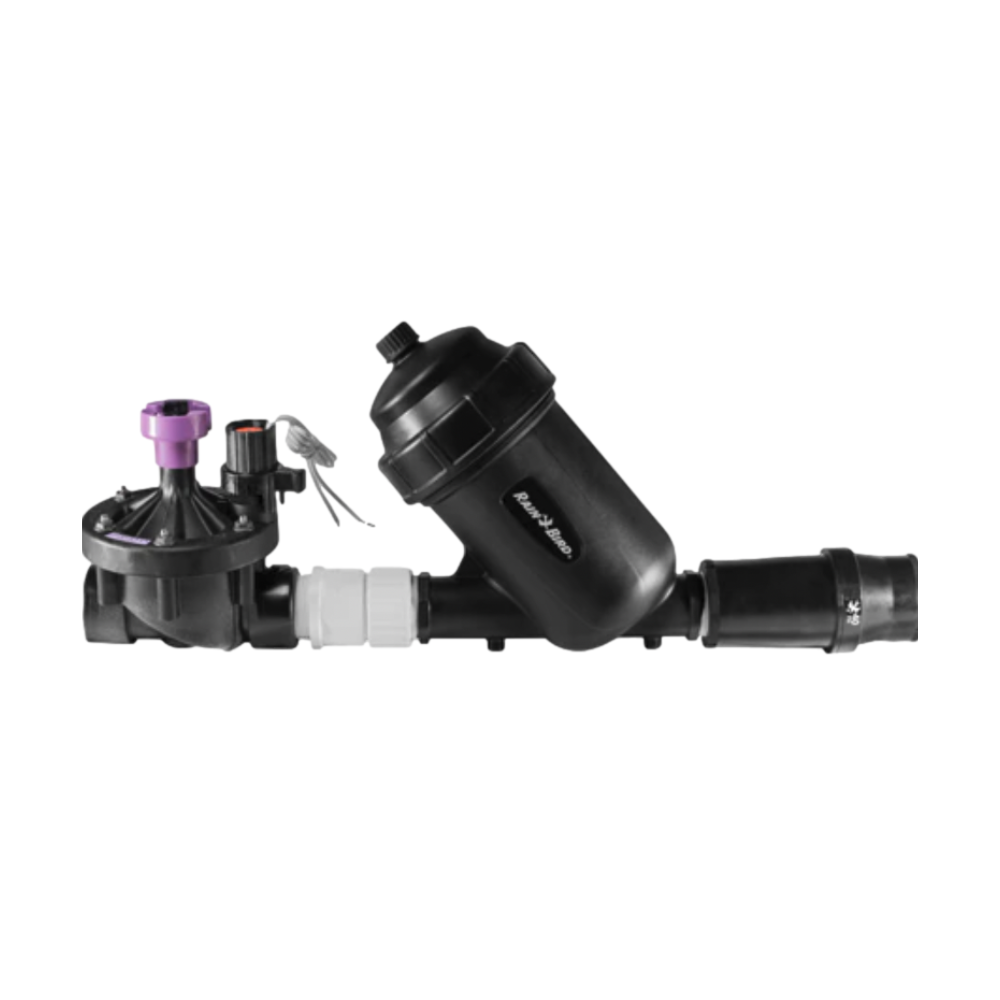

Rain Bird XCZ 1.5" High-Flow Inline Control Zone Kit

The Rain Bird XCZ 1.5" High-Flow Inline Control Zone Kit is a preassembled commercial irrigation solution that combines on/off control, filtration and pressure regulation in a single inline unit. Engineered for reclaimed water applications, it reduces installation time and minimizes potential leak points while delivering reliable performance for large drip and spray zones.

• High flow capacity: 15 to 62 GPM (56.8 to 234.7 L/min) to cover larger zones with fewer kits.
• Valve: 1.5" PESB-R inline valve engineered for low friction loss and reclaimed-water resilience.
• Filtration: Large-capacity disc filter, 120 mesh (130 microns) for dependable debris protection and easy cleaning.
• Pressure regulation: Factory-set 40 PSI (2.8 bar) regulator to maintain consistent downstream pressure.
• Operating range: Inlet pressure 15 to 115 PSI (1.03 to 7.9 bar); water temperature 33°F to 110°F (0.5°C to 43°C); ambient up to 125°F (52°C).
• Dimensions & compatibility: 1.5" x 1.5" NPT inlet, approximately 23-1/2" length; compatible with 24 VAC solenoids and commonly used controllers, including 2-wire decoder and IVM systems when used with the appropriate solenoid.

Delivered as a fully assembled kit, the XCZ150LCDR minimizes connections and installation time while providing long-term reliability. Its inline design allows placement of two kits in a jumbo valve box and is optimized for commercial reclaimed-water irrigation. Refer to the product technical specifications for complete installation, maintenance and warranty details.
