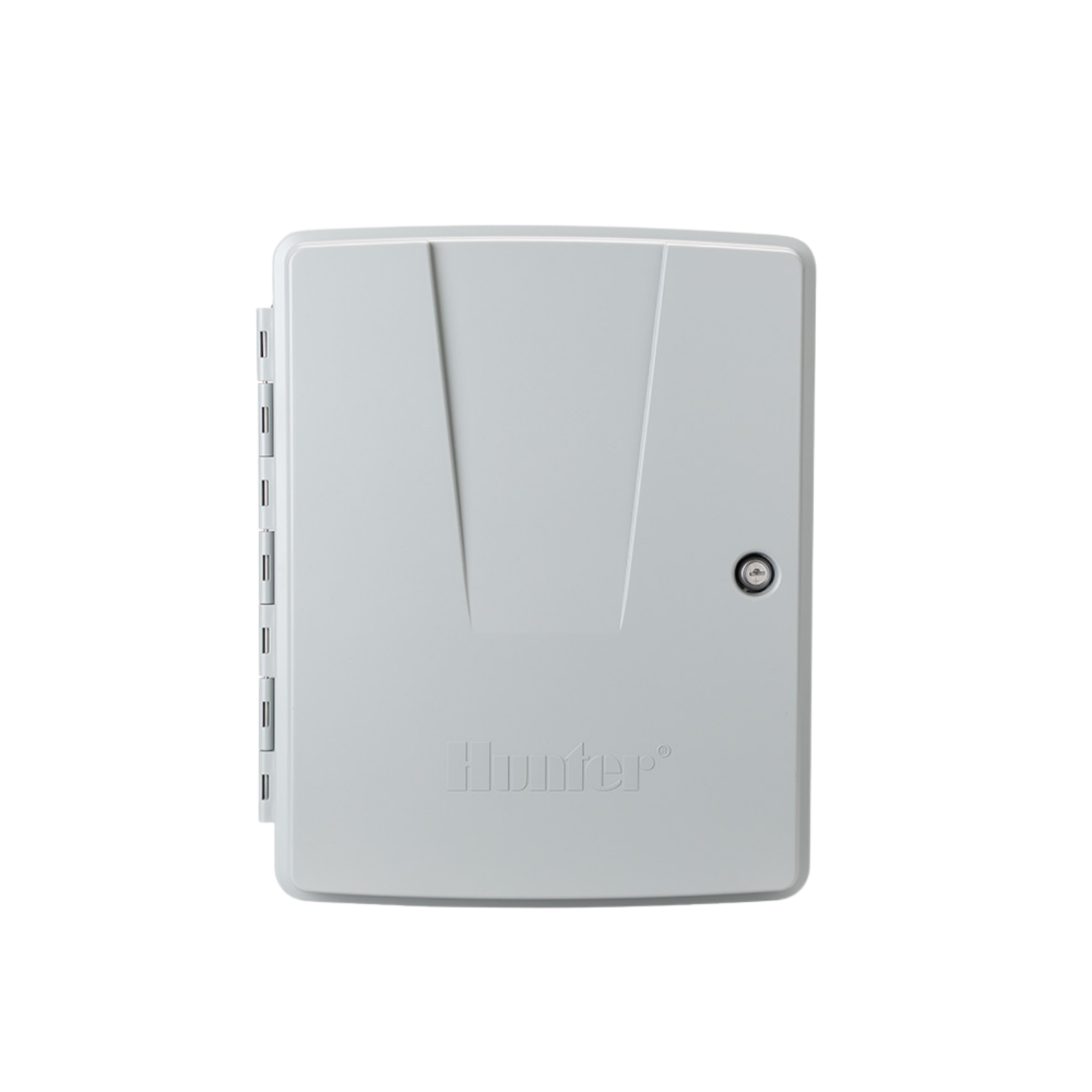

Front view of Hunter MCC-800-P controller in gray plastic wall-mount cabinet, closed.

Hunter MCC Controller, 8-station Base Model

Brand: Hunter
Save 25%
$977.62
$733.21
SKU MCC800P
In Stock (10)

Notify me when back in stock

The Hunter MCC Controller is a modular, commercial-grade irrigation controller. The 8-station base model in a durable plastic wall-mount cabinet (MCC-800) provides advanced flow monitoring, two-wire decoder support, and wireless connectivity for centralized management.

  • Electrical: Transformer input 120/230 VAC 50/60 Hz; transformer output 3 A; P/MV outputs 800 mA; max AC draw 120 VAC 2 A / 230 VAC 1 A
  • Communication: Wi‑Fi 2.4 GHz (802.11n), Ethernet RJ‑45 (100 Mbps), optional 4/5G LTE cell
  • Expandable to 108 stations with plug-in station modules; compatible with EZ Decoders and Wireless Valve Link

Integrates with Centralus and Hunter 360 for cloud-based management and supports simultaneous conventional, two‑wire, and wireless valve systems for flexible large-site control.

Reviews

Frequently Asked Questions

What is the station capacity and can the MCC be expanded?
The MCC-800-P ships as an 8-station base module and can be expanded up to 108 stations using plug-in station modules (ICM series).
How can I connect the MCC for remote or cloud control?
The controller supports Wi‑Fi (2.4 GHz, 802.11n), Ethernet (RJ‑45, 100 Mbps), and optional 4/5G LTE cellular modules; it integrates with Centralus and Hunter 360 for cloud-based management.
What are the enclosure ratings for the plastic wall-mount model?
The plastic wall-mount cabinet (MCC-800-P) is rated IP55 for outdoor protection against dust and water jets.
What power and electrical outputs does the MCC require?
Transformer input is 120/230 VAC at 50/60 Hz with a 3 A transformer output. P/MV outputs are rated at 800 mA; maximum AC draw is approximately 2 A at 120 VAC (1 A at 230 VAC).
Is the MCC compatible with decoders and wireless valve systems?
Yes. The MCC supports conventional outputs, two‑wire EZ Decoders, and Wireless Valve Link systems simultaneously for flexible site configurations.
