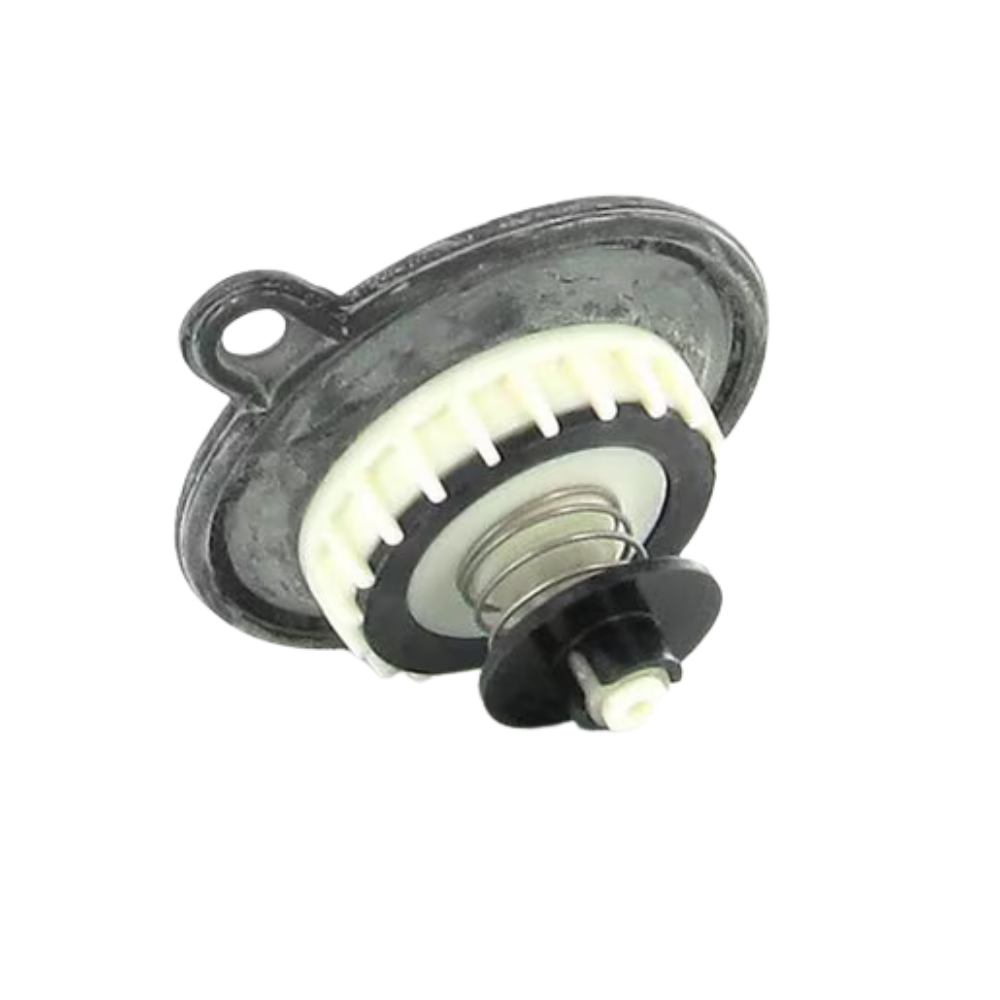

Close-up of Hunter 461503SP rubber diaphragm assembly for 1-inch IBV Filter Sentry irrigation valves; OEM replacement part

Hunter 461503SP Diaphragm Assembly for 1 in IBV Valves

Brand: Hunter
Save 25%
$47.44
$35.58
SKU 461503SP

Notify me when back in stock

Hunter OEM diaphragm assembly (461503SP) designed for 1 in ICV/IBV valves with the Filter Sentry® mechanism. This direct-fit replacement restores reliable sealing and control in irrigation systems and is made to Hunter specifications for long-lasting outdoor use.

  • Direct-fit OEM replacement for 1 in IBV/ICV valves with Filter Sentry mechanism (fits IBV-101G, IBV-151G, IBV-201G).
  • Durable rubber diaphragm engineered to resist wear, provide consistent sealing, and reduce leaks under normal operating conditions.
  • Simple installation: service the bonnet, seat the diaphragm correctly, and reassemble—no special tools required for routine replacement.
  • Compatible with standard 1 in connections and intended for use in Hunter brass IBV valves equipped with Filter Sentry.
  • Keeps irrigation systems operating efficiently by restoring valve responsiveness and preventing unintended flow.

Keep a spare 461503SP on hand for fast field service and minimal downtime. If you’re unsure about compatibility, refer to your valve parts list or the Hunter product documentation.

Reviews

Frequently Asked Questions

What valves is the Hunter 461503SP diaphragm compatible with?
Fits 1 in IBV/ICV Filter Sentry valves. Direct-fit for IBV-101G, IBV-151G and IBV-201G brass models.
How do I install the 461503SP diaphragm assembly?
Depressurize the valve, remove the bonnet, seat the new diaphragm, then reassemble. No special tools needed for routine service.
When should I replace the diaphragm in my IBV valve?
Replace when you see leakage, cracking, or loss of valve control. Lifespan varies with water quality and use—inspect periodically.
