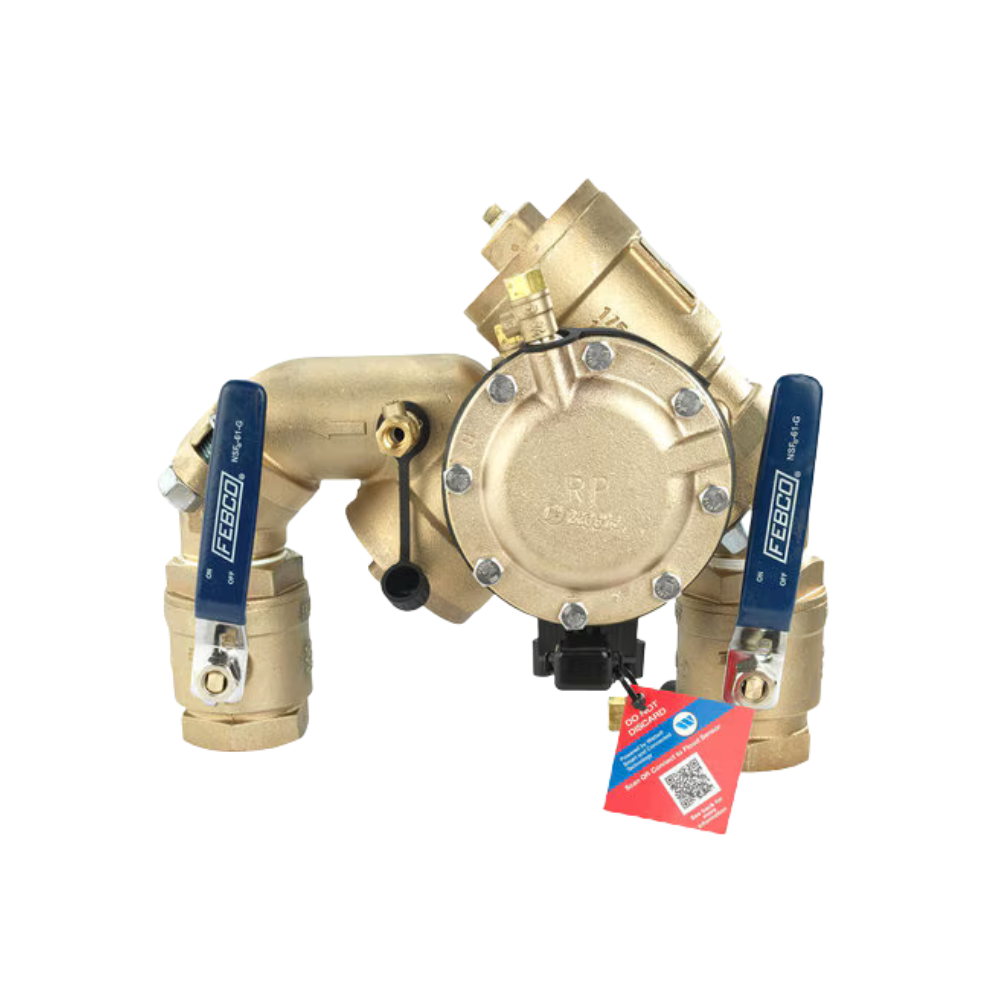

Front view of FEBCO 825YA 2 in. bronze angle reduced pressure zone assembly with ball valves

FEBCO 825YA 2 in. Angle Reduced Pressure Zone Assembly, Bronze, Ball Valves, Flood Sensor Ready

Brand: Sprinkler Supply Store
Save 25%
$2,831.86
$2,123.89
SKU F825HYA

Notify me when back in stock

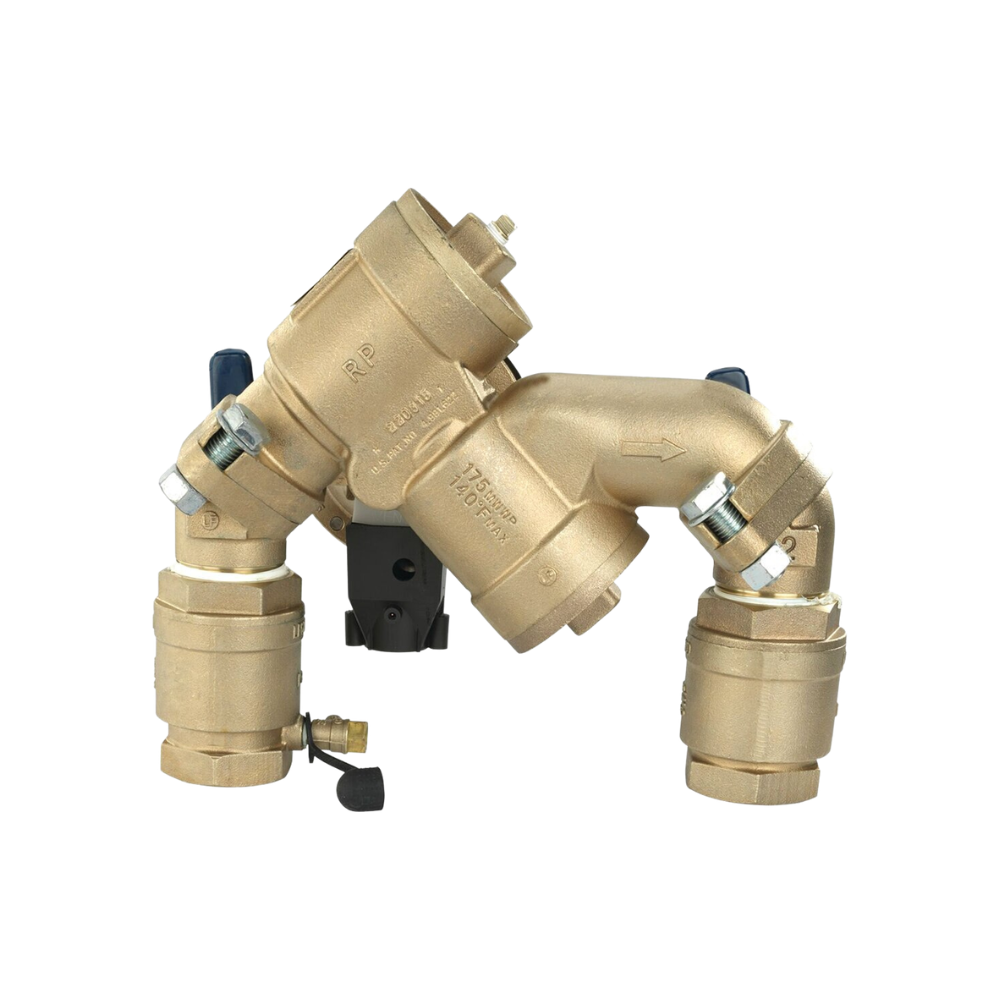

The FEBCO 825YA 2 in. angle-pattern Reduced Pressure Zone (RPZ) assembly provides reliable backflow protection for high-hazard applications. Designed with a robust bronze body and compact angle union connections, this 2 in. unit fits tight installations while simplifying maintenance.

  • Includes two spring-loaded Y-pattern check valves and integral quarter-turn ball shutoffs for easy service.

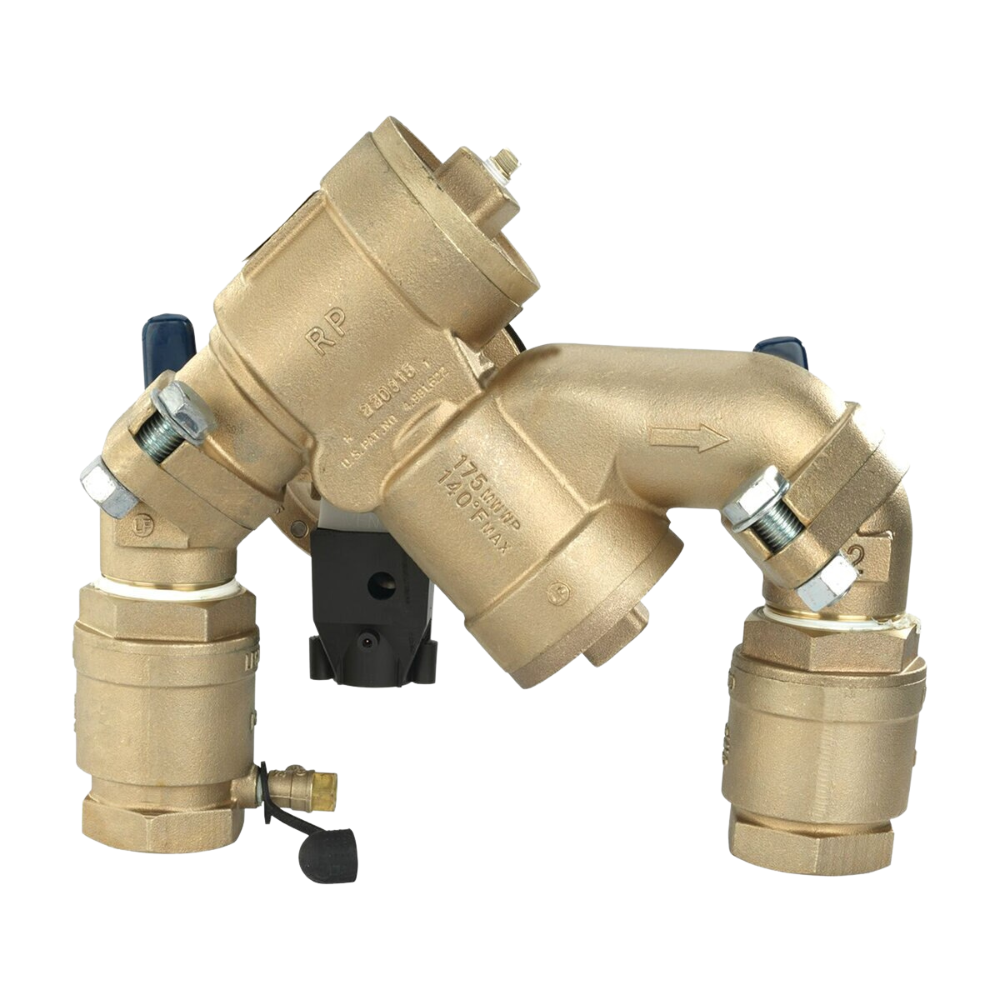

  • Flood-sensing feature is installed on the relief valve; the sensor relays alerts when paired with an add-on connection kit (sold separately).
  • Maximum working pressure 175 psi; hydrostatic test pressure 350 psi; temperature range 32°F to 140°F.
  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research; modular internal components for simplified servicing.

Ideal for irrigation, commercial, and industrial water systems, the FEBCO 825YA delivers compact installation, field-serviceable components, and detectable flood alerts when configured with the appropriate sensor kit. Professional installation and periodic testing are recommended to maintain certification and performance.

Reviews

Frequently Asked Questions

What does the FEBCO 825YA protect against?
The 825YA is a Reduced Pressure Zone (RPZ) backflow assembly that prevents backsiphonage and backpressure from allowing contaminated or high-hazard fluids to enter a potable water supply. It is intended for irrigation, commercial, and industrial applications.
Is the flood sensor active out of the box?
The flood sensor is installed on the relief valve but is passive until paired with an add-on connection kit (sold separately). Connection kit options provide BMS, cellular, or Wi‑Fi/RS‑485 integration for alerting.
What are the pressure and temperature limits for this unit?
Maximum working pressure is 175 psi (12.1 bar) with a hydrostatic test pressure of 350 psi (24.1 bar). Operating temperature range is 32°F to 140°F (0°C to 60°C).
Do I need a professional to install and test the FEBCO 825YA?
Yes. Professional installation and periodic certified testing are recommended to meet local codes and to ensure the assembly maintains proper operation and certification. The assembly is field‑serviceable, but testing requires the appropriate equipment and procedures.
