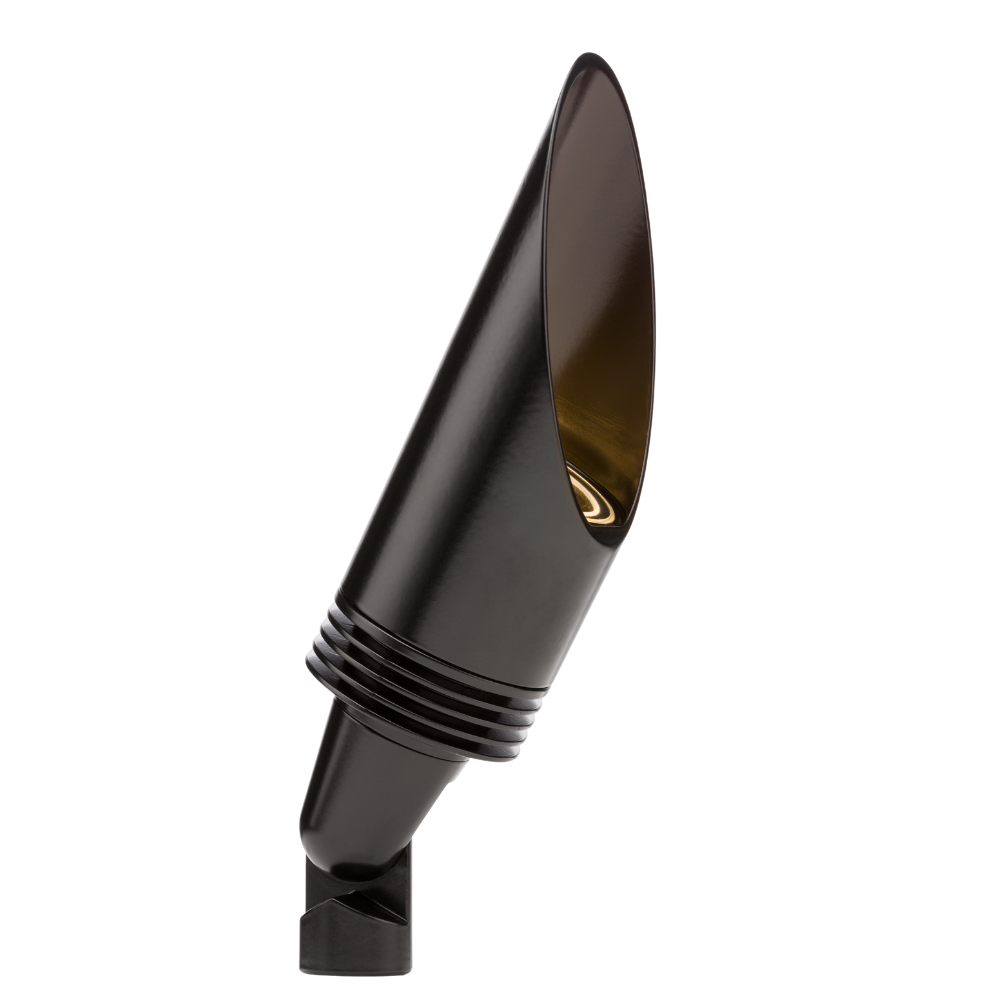

FX NP 6LED Up Light - ZD Zone/Dim, Long Shroud

The FX NP 6LED is a versatile, low-voltage LED up light engineered for landscape and architectural accent lighting. Its compact die-cast aluminum body and long-shroud option deliver controlled illumination with professional-grade durability.

• Durable construction: die-cast aluminum housing with two-layer marine-grade anodization and polyester TGIC powder coat for superior outdoor weathering.
• High-performance LEDs: integrated 6LED board producing approximately 510-560 lumens (depending on CCT) at 7.7W (9.3VA) with long-life LED boards rated for tens of thousands of hours.
• Control and dimming: ZD option provides Luxor zone/dim control; compatible with Luxor ZDC for color control when specified.
• Optics and glare control: ProAim adjustability with selectable beam angles (10°, 35°, 60°) and optional long shroud (LS) for reduced glare and longer cutoff.
• Installation-ready: includes 10' lead wire, spike, lock ring and beam angle lenses; input voltage 10-15V for common low-voltage systems.
• Size and finishes: compact footprint (Ø 2.66", H 8.38"; LS H 10.98"), lightweight (≈1.9 lb), available in multiple finishes including Bronze Metallic and Flat Black.

Designed for designers and installers, the NP 6LED balances precise beam control, long-term reliability, and flexible control options. Choose ZD for zonable dimming, add the long shroud for enhanced cutoff, and select the finish that complements your scheme. See the product spec sheet and owner's manual for full photometrics, IES files, and installation details.
