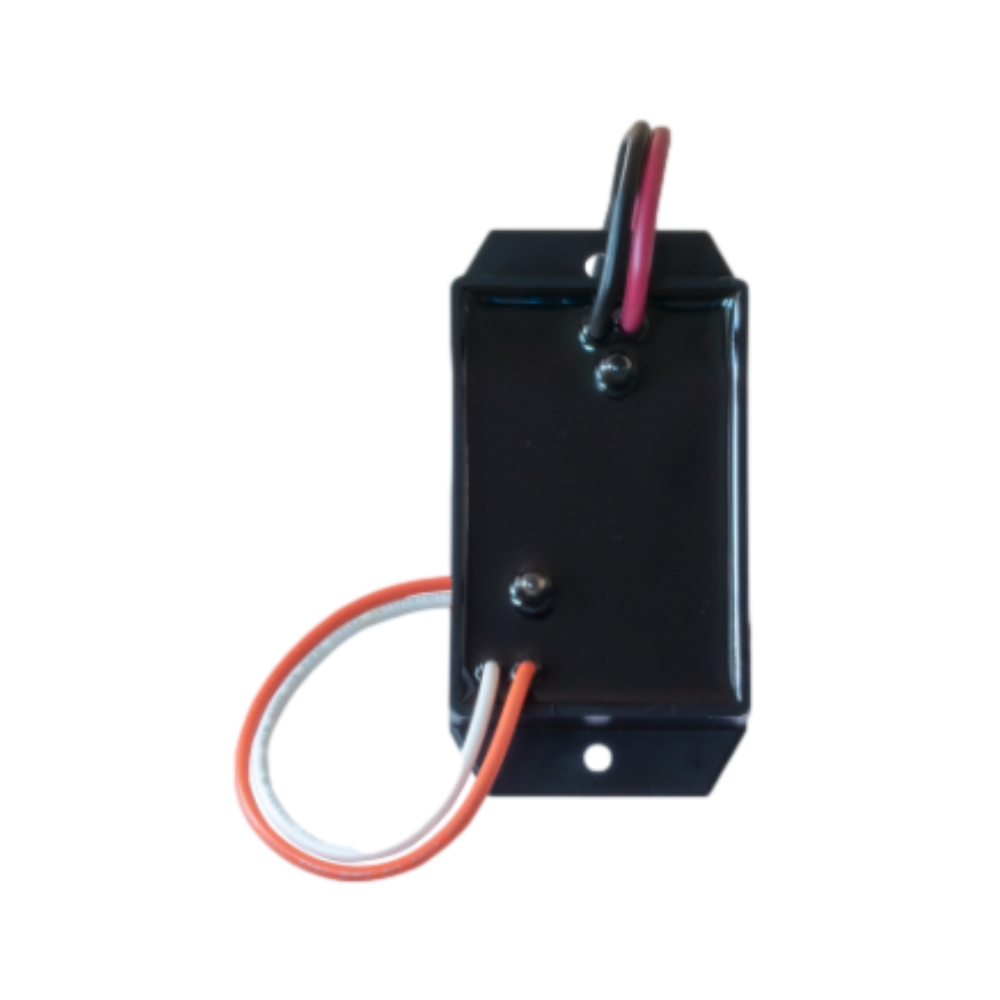

Baseline BL-5201 single-station biCoder valve decoder in weatherproof housing with integrated wire leads and diagnostic LEDs for field troubleshooting.

Baseline biCoder Valve Decoders — 1/2/4-Station Two-Wire Decoders

Brand: Baseline Inc
Save 25%
$308.24
$231.18
SKU BL-5201
In Stock (61)

Notify me when back in stock

Baseline biCoders are bi-directional two-wire valve decoders that simplify installation and field configuration for commercial and municipal irrigation systems. Available in single-, two- and four-station configurations, these sealed decoders send real-time status back to the controller while providing robust onsite diagnostics.

  • True bi-directional communication: receives commands and reports status back to the controller for accurate system monitoring and fewer callbacks.
  • In-field assignment: assign any biCoder or individual station to any zone directly from the controller after installation, eliminating extra programming trips.
  • Built-in diagnostics: integrated LEDs and an amperage meter detect no-current, station shorts and over-current conditions for faster troubleshooting.
  • Direct-burial rated: fully sealed, shock-resistant construction suitable for valve-box installation and outdoor use.
  • Reliable performance: supports multiple zones concurrently and extended two-wire distances to reduce controller count and shorten water windows.

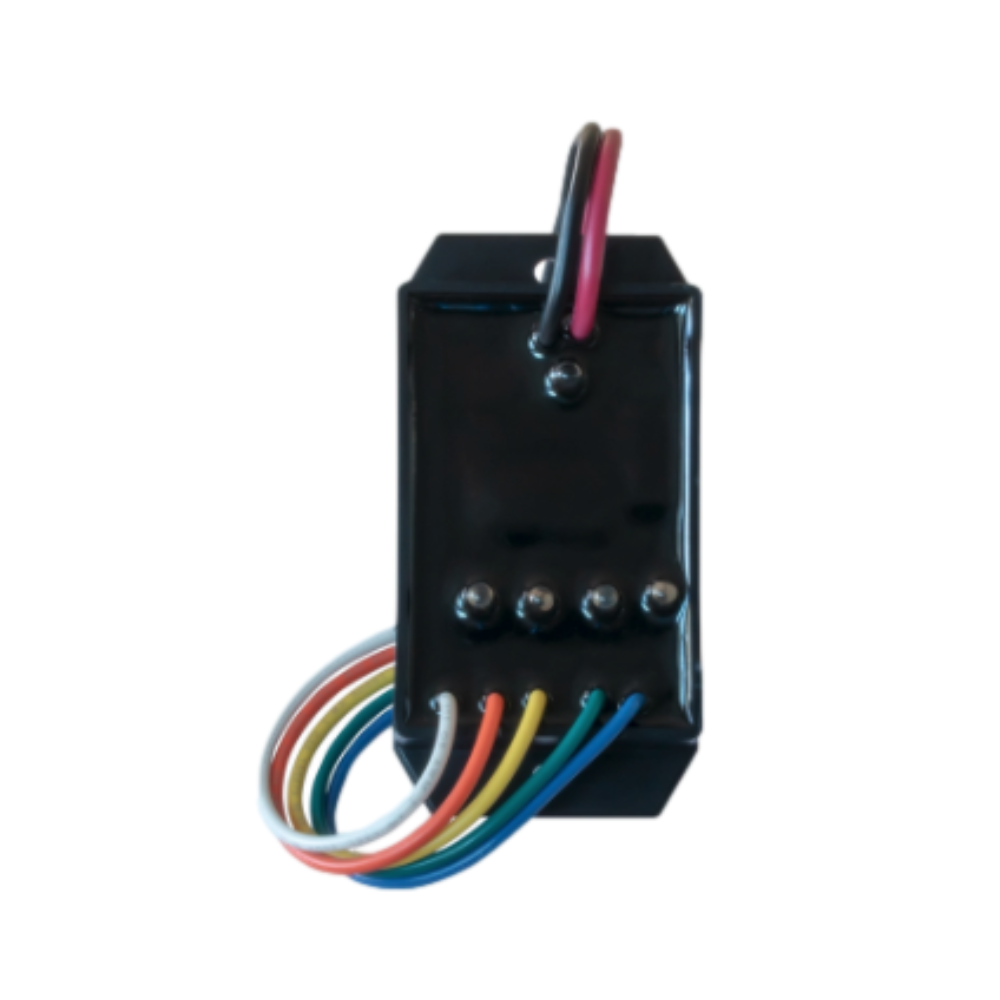

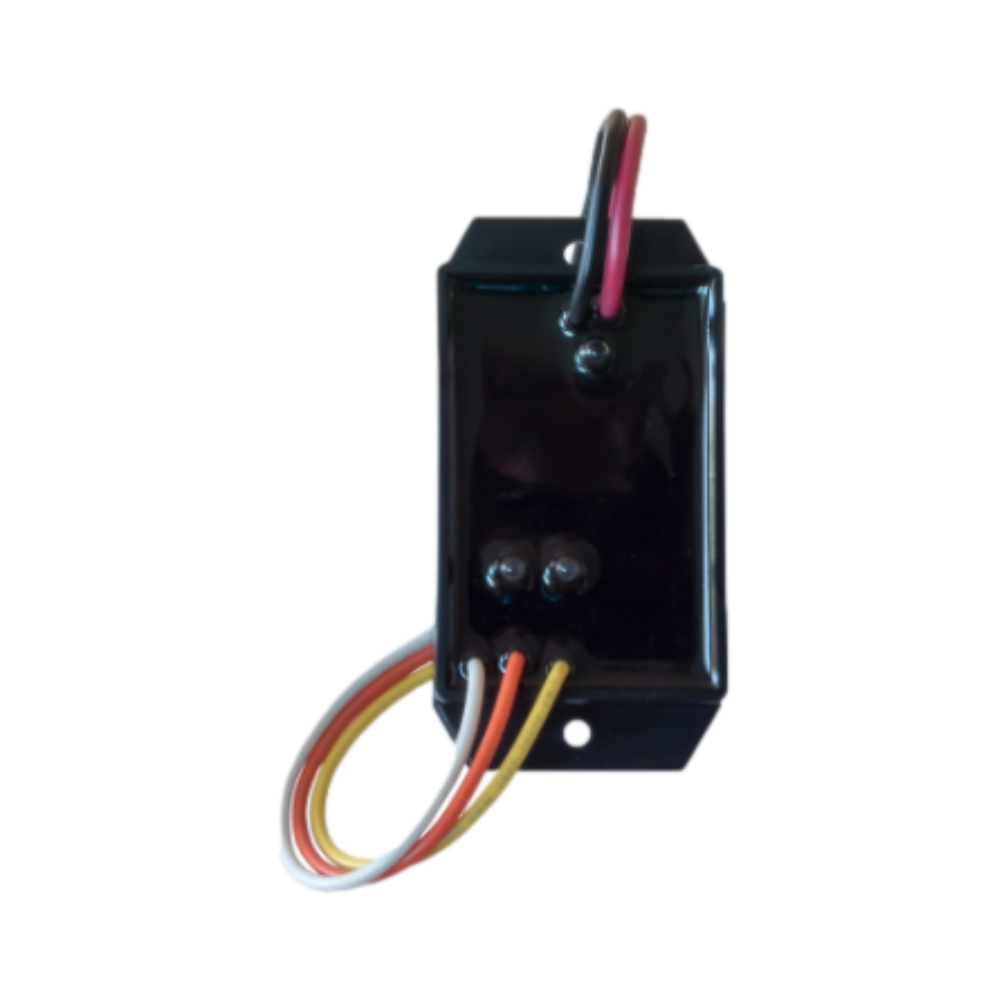

  • Multiple configurations and accessories: offered as BL-5201 (1‑station), BL-5202 (2‑station), BL-5204 (4‑station) and additional flow, pressure and event variants.

Each biCoder works with Baseline biLine two-wire controllers and follows Baseline’s biLine protocol for secure, low-voltage operation. They require typical irrigation solenoids (approx. 400 mA inrush, ~200 mA holding current) and include industry-grade sealing and wiring leads for straightforward valve-box installation. For detailed wiring diagrams, installation notes, and model-specific specifications, refer to the product technical documents linked on the product page.

Reviews

Frequently Asked Questions

What controllers are compatible with BL-5201 biCoders?
Works with Baseline biLine two‑wire controllers and other controllers that support the Baseline biLine protocol.
How far can valves be located from the biCoder?
Typical valve wiring runs up to 150 ft per station using 14‑gauge valve wire; longer runs may need alternative wiring strategies.
Are biCoders rated for direct burial and outdoor use?
Yes. biCoders are fully sealed, shock-resistant, and suitable for valve-box installation in outdoor irrigation systems.
What are the solenoid and power requirements for biCoders?
Design for solenoids with approx. 400 mA inrush and ~200 mA holding current; biCoders include an amperage meter for diagnosing current issues.
