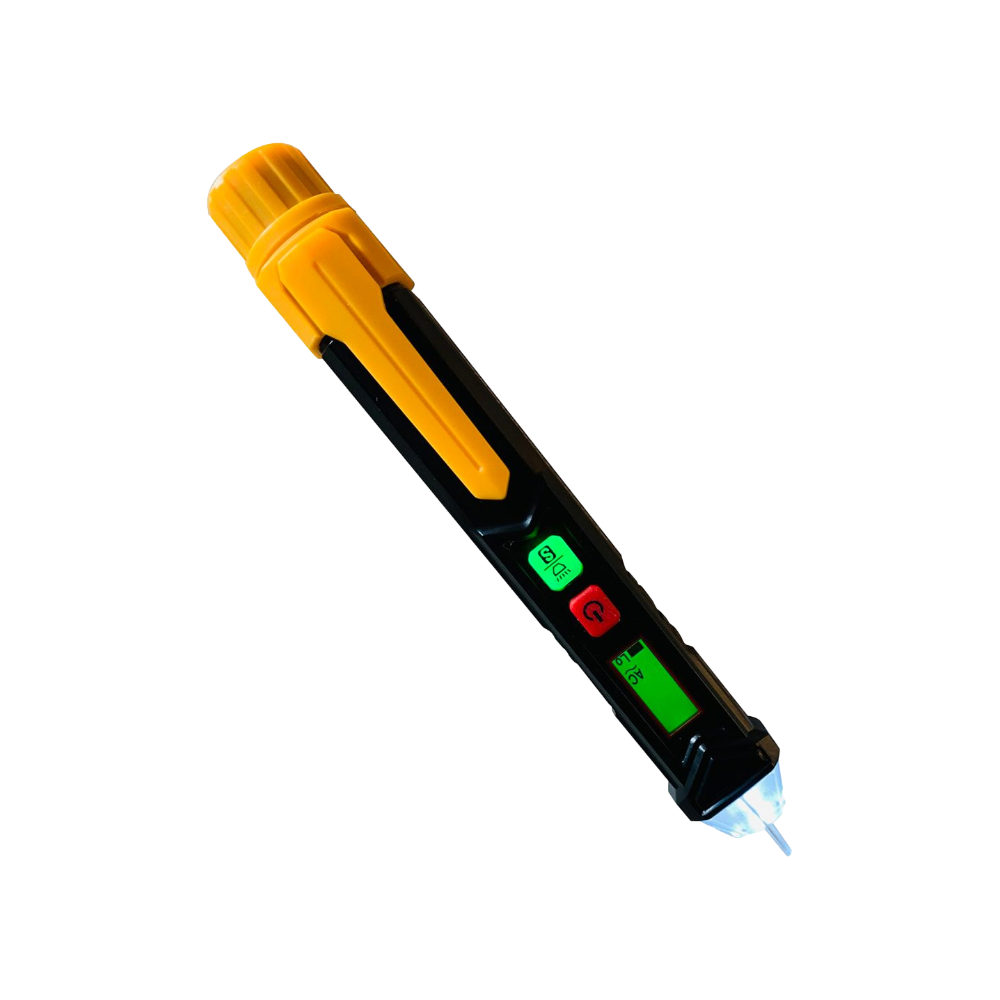

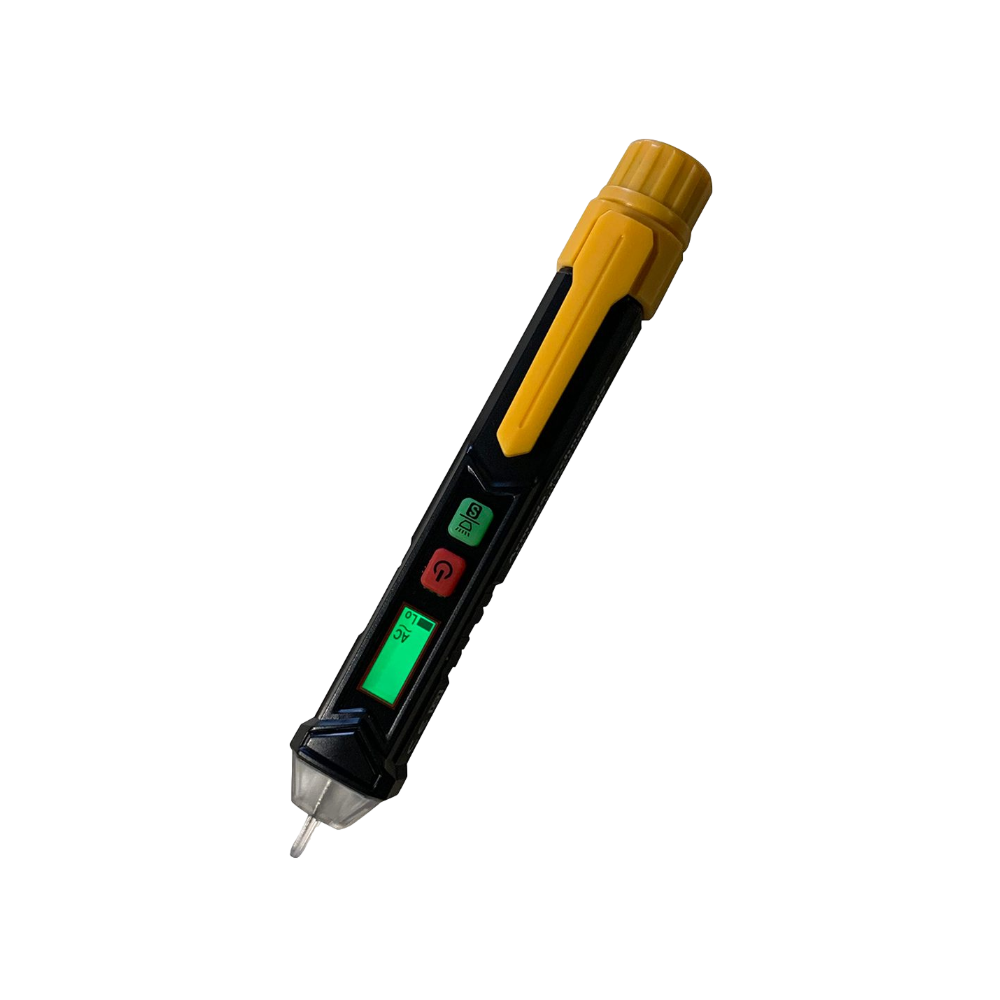

Armada PRO12 Wide-Range Non-Contact Voltage Detector
Overview
The Armada PRO12 is a compact, wide-range non-contact voltage (NCV) detector built for irrigation technicians, lighting installers and electricians who need a fast, safe check for live conductors. It detects AC voltage through insulation and combines clear visual and audible alerts with an LED headlight and backlit LCD for use in dim workspaces.
- Wide operating range: Detects AC voltage from 12–1000V (50/60 Hz) for both low-voltage lighting and standard mains circuits.
- Dual sensitivity modes: High sensitivity 12–1000V and Low sensitivity 48–1000V for selective testing of small conductors and larger cables.
- Safety rated: Fully insulated design with IEC 61010 compliance; CAT III 1000V and CAT IV 600V safety ratings.
- Clear indicators: Audible beep, probe-tip LED and bar-style backlit LCD indicate presence and relative strength of AC voltage.
- Built-in lighting: Integrated headlight for poorly lit access areas and a backlit display for improved visibility.
- Portable power: Operates on two (2) AAA batteries; includes low-battery indicator and auto power-off to conserve battery life.
- Practical design: Shielded probe tip for selective testing, lightweight construction, and simple push-button power and sensitivity control.
Use the PRO12 for quick non-contact checks of outlets, insulated cables, landscape lighting, controllers and junction boxes before working on wiring. Always test the detector on a known live circuit before use, read the user manual for full safety warnings and replace batteries as indicated. The PRO12 is a compact, easy-to-carry tool that helps reduce risk when troubleshooting electrical and irrigation systems.
