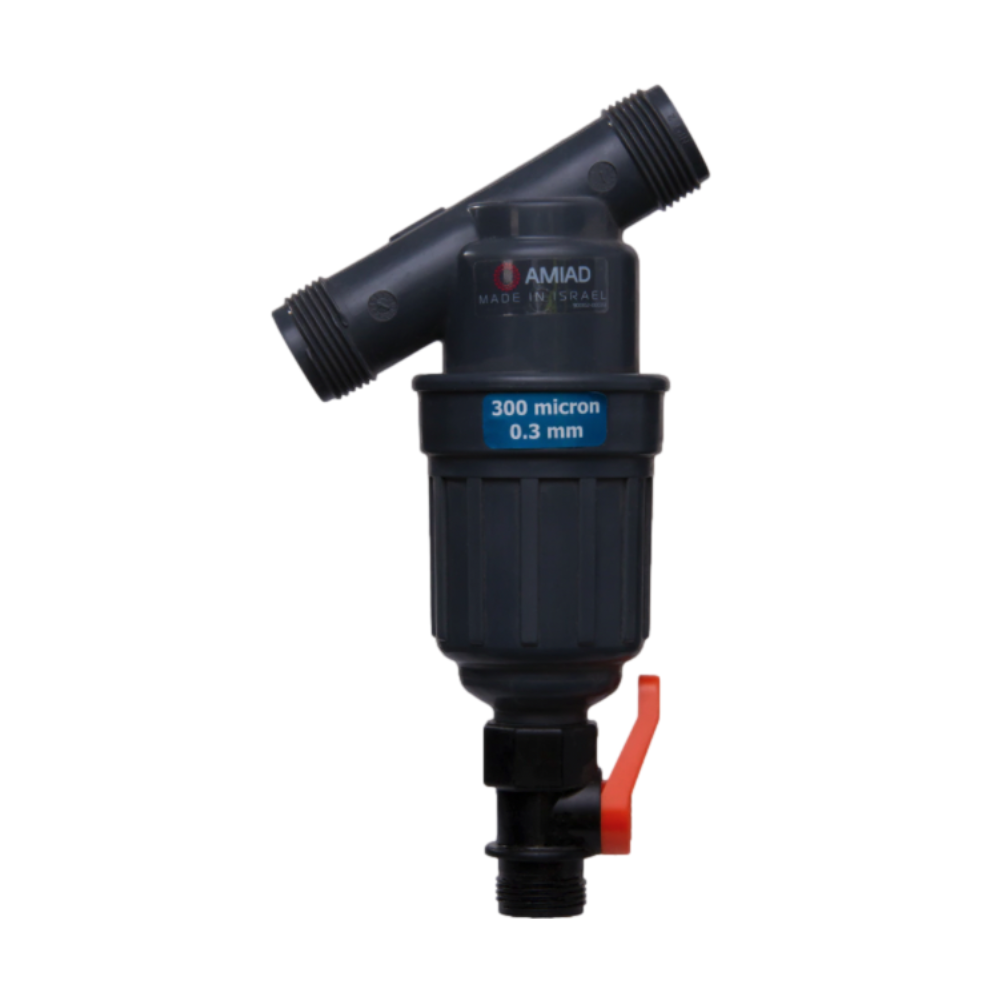

Close-up of AMAID 1-inch Tagline irrigation screen filter showing plastic housing, angled inlet, and orange plastic drain ball valve for flushing.

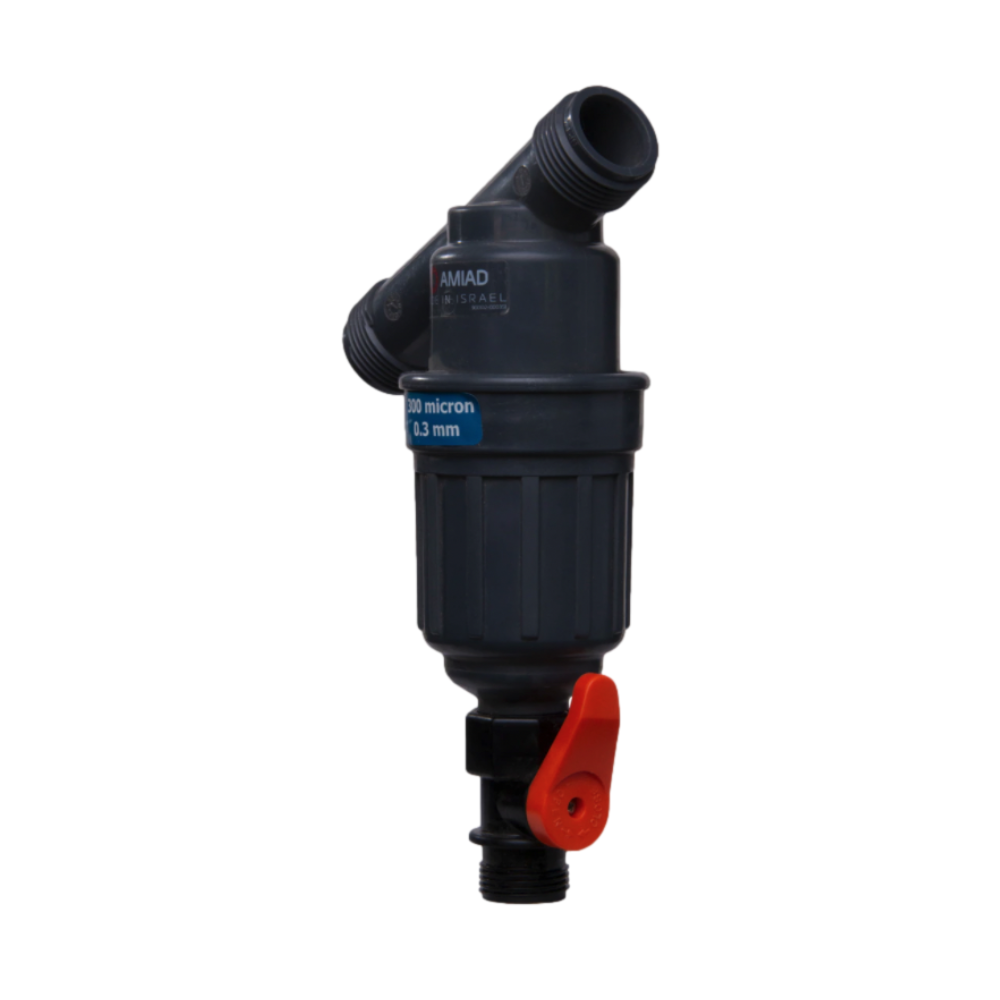

AMAID 1" Tagline Screen Filter with Ball Valve

Brand: AMAID
Save 25%
$35.49
$26.62
SKU 1-1001-4851-1030
In Stock (2)

Notify me when back in stock

The AMAID 1" Tagline 1" screen filter delivers reliable filtration for agricultural irrigation systems. Designed for field use, it accepts either a stainless-steel screen cylinder (inside→out flow) or a disc element (outside→in) so you can match filtration type to water quality and debris size.

  • Compact 1" T filter body for inline irrigation and drip systems.
  • Choice of stainless-steel screen or disc element for versatile filtration.
  • High-strength engineered plastic housing (RPP) for corrosion resistance.
  • Low pressure loss for efficient flow and minimal pump impact.
  • Integrated plastic ball drain valve enables quick manual flushing.
  • Simple maintenance: unscrew lid, rinse screen or remove and rinse disc element.
  • Cleaning recommended when differential pressure reaches 0.5–0.6 bar (7–8 psi); short-term element pressure limit 6 bar (90 psi).

Installation notes: install the filter housing oriented downward, use plastic connectors when joining to metal pipes, and apply Teflon or silicone sealing material to the inlet/outlet threads (do not apply sealing material to the compression-style drain port). The product is backed by the manufacturer's 12-month warranty when installed and maintained per instructions.

Reviews

Frequently Asked Questions

How do I clean the Tagline filter element?
Shut off supply, release pressure, unscrew lid, rinse the screen or remove and rinse the disc; reassemble and pressurize.
Which filter element types are available?
This model accepts a stainless-steel screen cylinder (inside→out) or a disc element (outside→in) to suit water quality.
When should I clean the filter?
Clean when inlet-to-outlet pressure drop reaches 0.5–0.6 bar (7–8 psi); frequent cleaning prevents clogging and pressure loss.
What are the pressure limits and warranty?
Short-term pressure across the element should not exceed 6 bar (90 psi). The product includes a 12-month manufacturer warranty.
