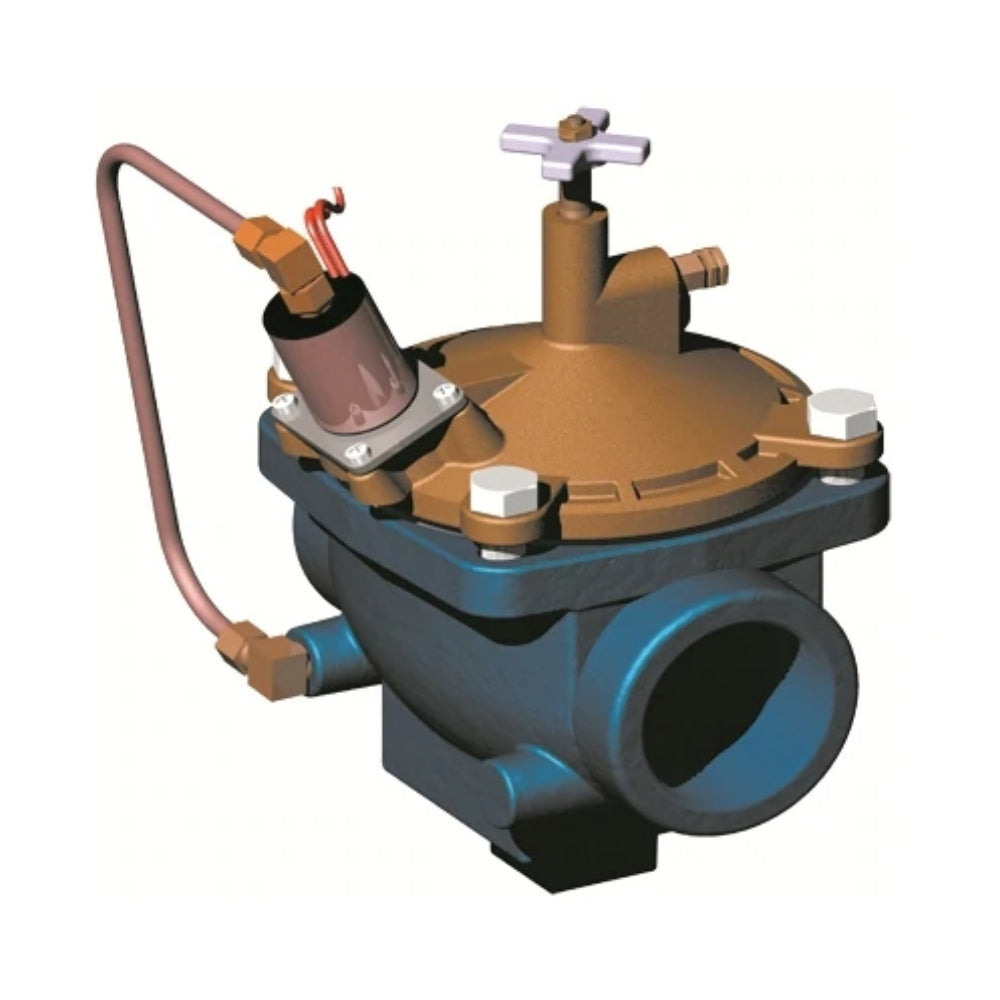

Griswold 2160K Normally-Open 1-1/2 in RCV Solenoid Valve

Griswold 2160K Normally-Open 1-1/2 in RCV Solenoid Valve

Brand: Griswold
Save 25%
$1,531.96
$1,148.97
SKU 2160K

Notify me when back in stock

The Griswold 2160K is a heavy-duty, normally-open RCV solenoid valve engineered for irrigation and commercial water control. Built with a cast iron body and bronze internal components, the 2160K delivers dependable on/off control while minimizing maintenance. Its slow-closing diaphragm design prevents water hammer and chatter, and the valve is fully serviceable without removing the body from the system.

  • Size & Connections: 1-1/2 in FIPT (model 2160K); NPT standard (BSPT optional).
  • Materials: Cast iron body with bronze trim and stainless-steel guided diaphragm-disc assembly.
  • Electrical: 22-28 VAC operating range; low current: 0.40 A at 24 VAC for efficient coil operation.
  • Pressure & Flow: Rated 2–200 PSI operating pressure. Straight pattern Cv: 26.00; Angle pattern Cv: 29.00 (see spec sheet for flow/pressure loss table).
  • Dimensions & Weight (nominal): A=6.00 in, B=3.00 in, C=5.50 in, D=5.50 in; approx. ship wt 12.25 lbs.
  • Serviceability & Options: Watertight epoxy-molded solenoid coil, slow closing for surge protection, optional purple handle for reclaimed water (add “R”), optional epoxy coating (add “E”).

The 2160 series is self-cleaning and designed to tolerate silt and debris found in irrigation and reclaimed water applications. Use the 2160K as a normally-open master valve or where reliable, slow actuation is required. For sizing and expected pressure loss at specific flow rates consult the Griswold 2160 specification sheet (Form F-2667). Install with compatible rated fittings and a protected control transformer sized for the valve coil; perform periodic diaphragm and coil inspections to maintain long service life.

Reviews

Frequently Asked Questions

What is the operating pressure range for this valve?
The 2160K is rated for 2 to 200 PSI for typical irrigation and control applications.
What electrical supply and current does the coil require?
The coil operates at 22–28 VAC and draws 0.40 A at 24 VAC; size transformer accordingly.
Can this valve be used with reclaimed water?
Yes. Order the reclaimed-water option (add “R”) or choose the purple-handle variant for reclaimed applications.
Is the 2160K serviceable without removing the body?
Yes. The diaphragm-disc assembly is fully serviceable without removing the valve body from the piping.
