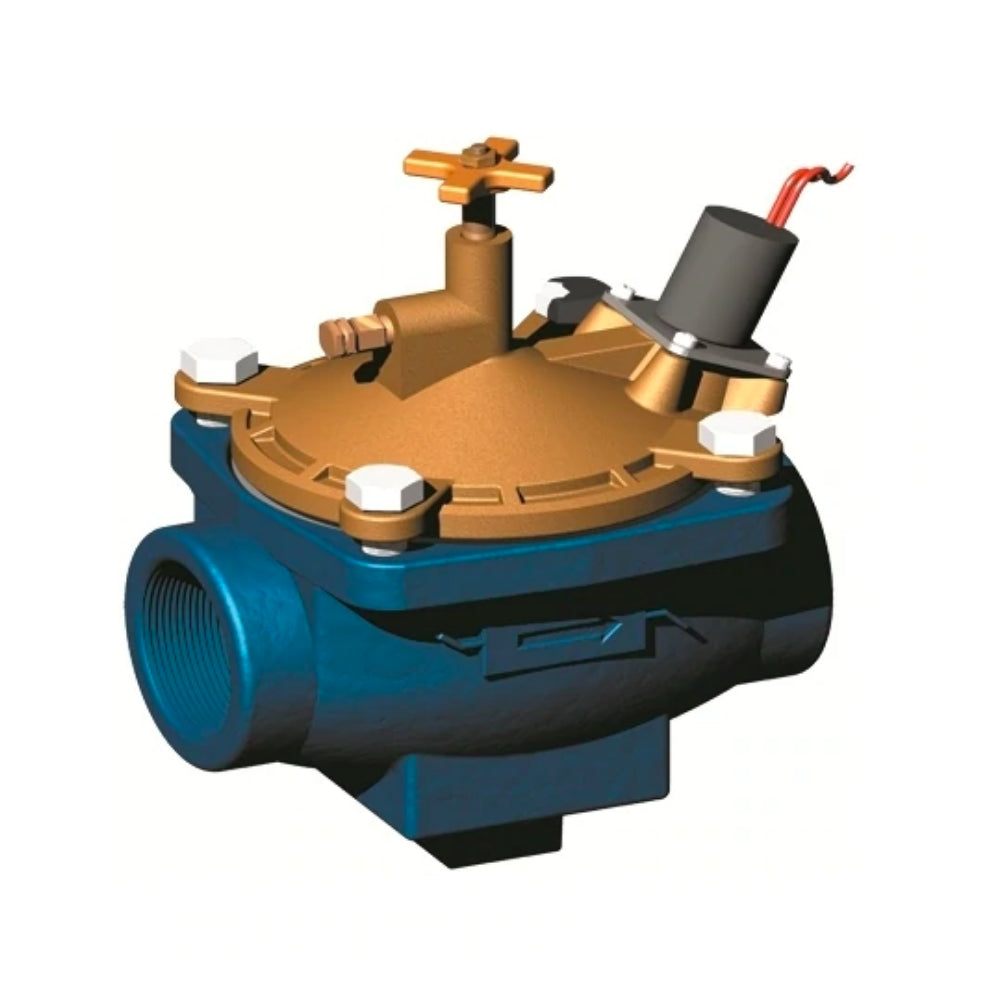

Griswold 2000H 1-inch normally closed diaphragm irrigation valve in cast iron and bronze, female pipe thread connections.

Griswold 2000H 1" Normally Closed Irrigation Valve

Brand: Griswold
Save 25%
$608.85
$456.64
SKU 2000H

Notify me when back in stock

The Griswold 2000H is a heavy-duty, 1-inch normally-closed solenoid diaphragm valve engineered for irrigation, reclaimed-water, and general-purpose master-valve applications. Designed for demanding field conditions, the 2000 series resists sludge, silt and algae with a self-cleaning control port that minimizes maintenance. The valve offers controlled, slow opening and closing to eliminate water hammer, and its serviceable diaphragm assembly permits in-place repairs without removing the valve body.

  • Operating range: 2 to 300 PSI operating pressure; series flow capability from 0.01 to 3000 gpm for a wide range of system sizes; pressure accuracy ±5%.
  • Materials & connections: Durable cast iron body with bronze internal components. Standard 1" female pipe thread (FIPT/NPT) end connections; BSPT threads available as an option.
  • Electrical: Wide coil voltage range 17–40 VAC to accommodate field controllers; low current draw of 0.40 A at 24 VAC; watertight epoxy-molded solenoid coil for long life.
  • Design benefits: Self-cleaning diaphragm and guided stainless-steel stem prevent clogging and chatter. The valve will throttle against flow, is slow-closing to prevent surge, and is completely serviceable in-line.
  • Options & sizing: Optional epoxy fused coatings and a purple handle for reclaimed-water identification. The 1" 2000H nominal dimensions are A 4.25", B 2.50", C 4.50", D 4.00" with approximate ship weight 7.75 lbs; consult datasheet for Cv and pressure-loss charts.

For specification-grade projects, commercial irrigation systems, and pump-station master valves, the Griswold 2000H combines rugged materials, wide electrical compatibility, and service-friendly design. Download or consult datasheet F-4219 for detailed performance curves, Cv values by pattern and size, and installation recommendations prior to specifying.

Reviews

Frequently Asked Questions

What voltage and current does the 2000H valve require?
The solenoid accepts 17–40 VAC. Typical current draw is 0.40 A at 24 VAC.
How much pressure can the 2000H handle?
Rated for 2 to 300 PSI operating pressure; series pressure accuracy is ±5%.
Can the 2000H be used with reclaimed water?
Yes. Optional purple handle and epoxy coating are available for reclaimed-water applications.
What are the dimensions and weight of the 1" 2000H model?
1" 2000H nominal dimensions: A 4.25", B 2.50", C 4.50", D 4.00"; ship wt ≈7.75 lbs.
