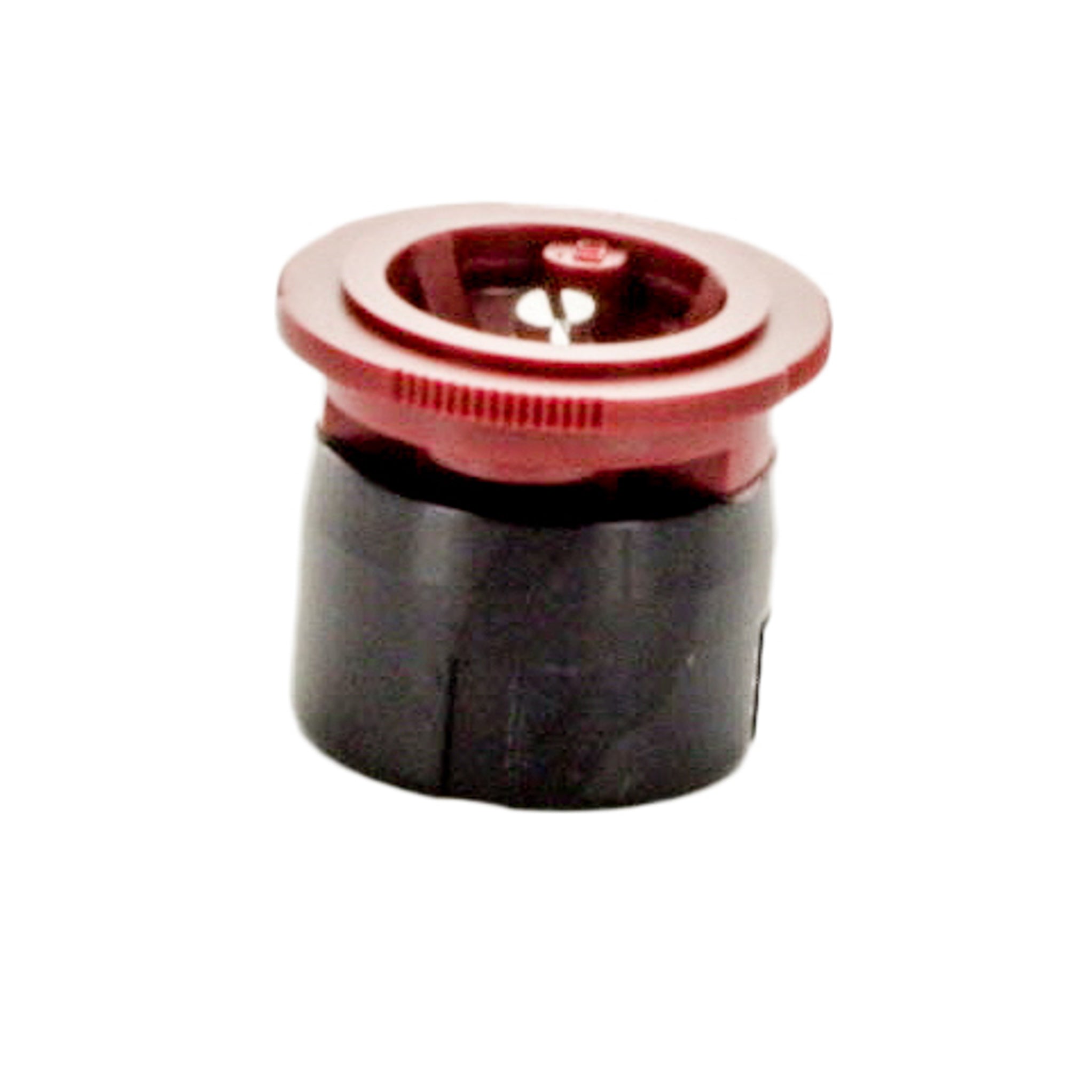

Irritrol IPN-5F I-PRO fixed 5-foot full-circle spray nozzle, red color-coded top and integrated filter, angled front view, ribbed grip

Irritrol I-PRO IPN-5F Fixed 5' Full-Flow Nozzle w/Filter

Brand: Irritrol
Save 62%
$4.04
$1.52
SKU IPN-5F
In Stock (25)

Notify me when back in stock

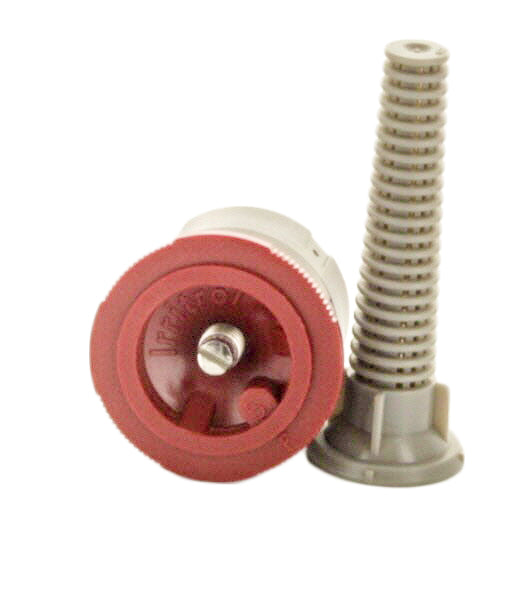

Compact fixed 5' full-circle nozzle designed for uniform coverage and efficient water use. Built-in filter helps prevent clogs and simplifies maintenance.

  • Radius: 5 ft (approx. 1.5 m); full 360° arc; 0° trajectory.
  • Matched Precipitation Rate for even water distribution across the arc family.

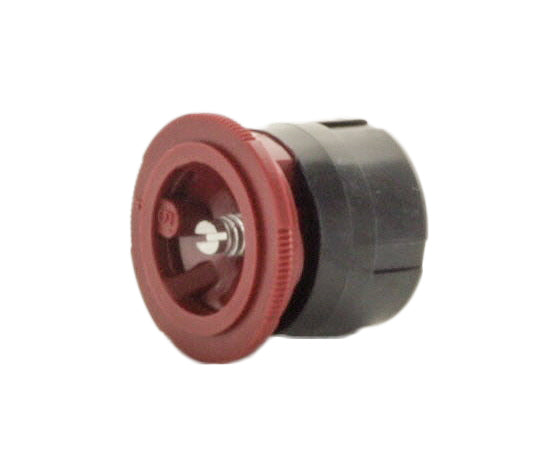

  • Female-threaded; fits standard male-threaded risers and I-PRO spray heads.
  • Recommended operating pressure 20-50 psi (max 75 psi); flow range approx. 0.06-4.75 GPM.

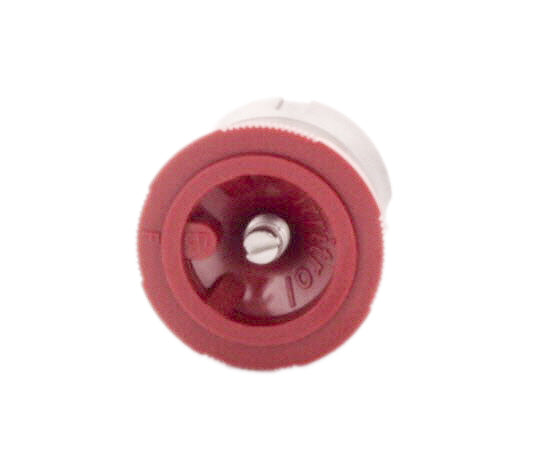

  • Color-coded red top for quick radius identification; ribbed edge for a non-slip grip.
  • Stainless-steel radius-adjustment screw allows up to 25% in-field reduction.

Ideal for residential and light-commercial irrigation where precise, low-flow coverage is required. Compatible with most pop-up spray heads and backed by a 5-year warranty.

Reviews

Frequently Asked Questions

What is the spray radius and arc for the IPN-5F?
The IPN-5F provides a 5-foot radius with a full 360° arc and a 0° trajectory for level installations.
What operating pressure and flow range are recommended?
Recommended operating pressure is 20–50 psi (maximum 75 psi). Flow range is approximately 0.06–4.75 GPM depending on pressure.
Will this nozzle fit my existing spray head?
Yes. The nozzle is female-threaded and fits standard male-threaded risers and most I-PRO series spray heads.
How do I clean or maintain the nozzle filter?
Remove the nozzle from the riser, rinse the filter screen under running water and reinstall. Inspect periodically to prevent clogging.
