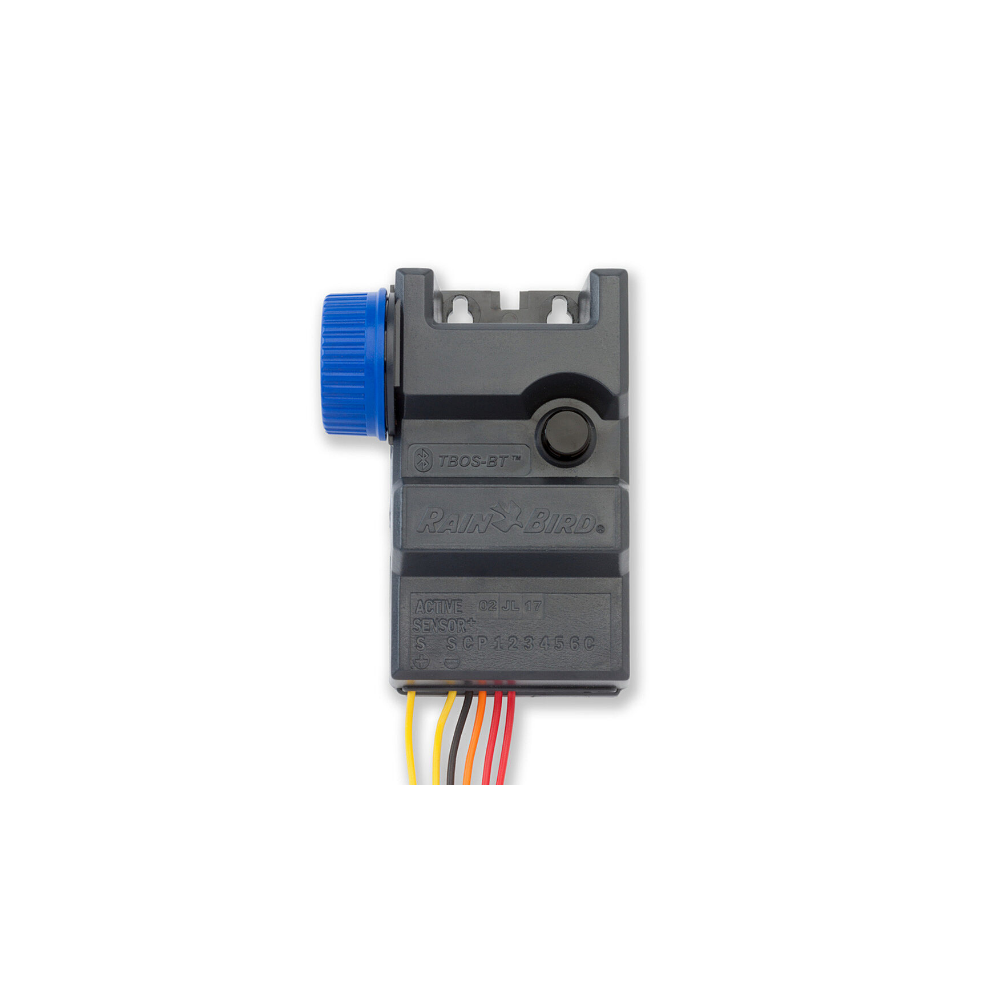

Rain Bird TBOS-BT6 6-Station Bluetooth Battery Controller

Rain Bird TBOS-BT6 6-Station Bluetooth Battery Controller

Brand: Rain Bird
Sold out
$424.09
$312.85
SKU TBOS-BT6

Notify me when back in stock

The Rain Bird TBOS-BT6 is a 6-station Bluetooth battery controller engineered for commercial and municipal irrigation where AC power is unavailable. Its fully potted, vandal-proof IP68 housing and smartphone programming make it ideal for medians, roundabouts, and remote valve boxes.

  • Bluetooth 4.0 programming via the free Rain Bird mobile app; create programs A, B and C with up to 8 start times per program.
  • Station timing from 1 minute to 12 hours per station in 1-minute increments; stations can be assigned to multiple programs.
  • Operates on a single 9V alkaline battery (type 6 AM6 / 6LR61); typical battery life is approximately one year.
  • IP68 waterproof, fully potted case for reliable submerged operation and vandal-proof protection in valve boxes.
  • Compatible with Rain Bird valves (DV, DVF, ASVF, PGA, PEB, PESB, GB, EFB-CP, BPE, BPES) and select non-Rain Bird valves (Hunter 458200, Irritrol DCL, Toro DCLS-P).
  • Master valve/pump output on multi-station modules; supports Rain Bird RSD-BEx rain sensor input and station naming for easy identification.
  • Compact module size (3.8" W x 5.1" H x 2" D) and compatible accessories including TBOS potted latching solenoid and adapters.

Simple to install and maintain, the TBOS-BT6 delivers reliable, battery-powered irrigation control with flexible scheduling, built-in seasonal adjustments, and robust weatherproof protection. Consult the product manual or Rain Bird technical sheet for wiring diagrams, certifications, and accessory part numbers before installation.

Reviews

Frequently Asked Questions

What power source does the TBOS-BT6 require?
A single 9V alkaline battery (type 6 AM6 / 6LR61). Battery life is typically about one year.
How many stations and programs can the controller handle?
Supports six stations and three independent programs (A, B, C) with up to 8 start times per program.
Is the TBOS-BT6 suitable for submerged valve box installations?
Yes. The controller is IP68 rated for submerged use and housed in a vandal-proof case for valve box installations.
