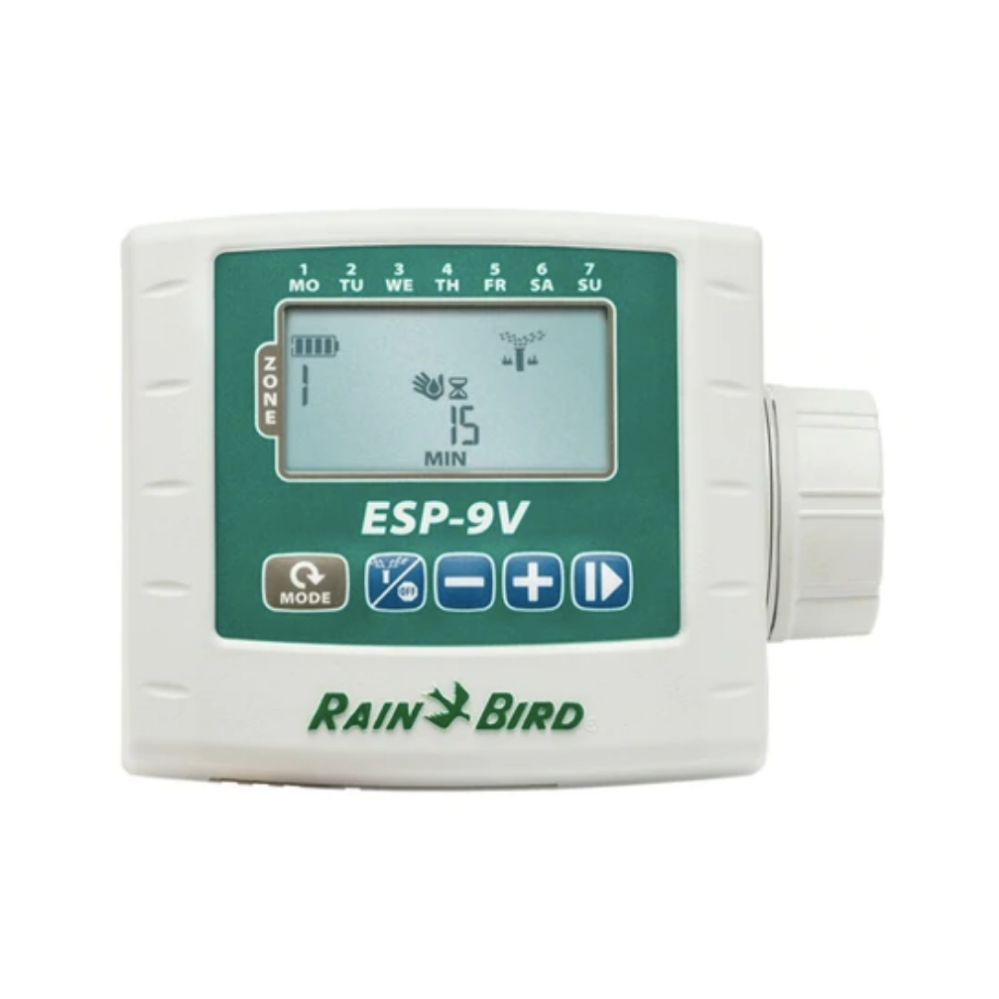

Rain Bird ESP-9V4 4-Station Battery Irrigation Controller

Rain Bird ESP-9V4 4-Station Battery Irrigation Controller

Brand: Rain Bird
Sold out
$243.67
$179.75
SKU ESP9V4

Notify me when back in stock

The Rain Bird ESP-9V4 is a battery-operated 4-station irrigation controller engineered for reliable automatic watering where AC power is not available. Compact and weatherproof, the ESP-9V4 offers intuitive programming on a large sealed LCD, a one-touch manual watering button, and long battery life so systems run dependably in valve boxes, sheds, or remote locations.

  • Battery-powered operation: Runs on one or two 9V alkaline batteries; two batteries provide more than two years of typical operation, while one battery provides at least one year of operation under normal conditions.
  • Weatherproof construction: IP68-rated sealed enclosure and gasketed battery compartment protect the controller from dust, dirt and water for reliable outdoor or valve-box installation.
  • Easy programming and operation: Large, sealed LCD with at-a-glance programming shows run times, start times and watering days for each zone; dedicated manual-start button for quick water-on access.
  • Non-volatile memory: Program settings are retained even if batteries are removed; long-term program memory protects schedules through battery changes.
  • Control features: Includes sensor input with bypass option and a master valve/pump start circuit for systems that require a pump or master valve.
  • Compact footprint: Small, robust housing is ideal for in-ground valve box mounting or wall installation — dimensions: 13.59 cm W × 10.26 cm H × 6.15 cm D; weight: approximately 907 g.

The ESP-9V4 is compatible with Rain Bird 9V latching solenoids and common rainfall sensors such as the RSD-BEX; it ships backed by Rain Bird’s industry-leading 5-year warranty. For full installation and programming instructions, refer to the ESP-9V user manual and spec sheet provided with the product.

Reviews

Frequently Asked Questions

What batteries does the ESP-9V4 use and how long do they last?
Uses one or two 9V alkaline batteries. With two batteries expect over two years of typical operation; one battery gives at least one year.
Is the ESP-9V4 suitable for outdoor or valve-box installation?
Yes. The controller has an IP68-sealed enclosure and gasketed battery compartment designed for valve-box or outdoor mounting.
Can I connect a rain sensor or a master valve to this controller?
Yes. The ESP-9V4 includes a sensor input with bypass option and a master valve/pump-start circuit for pump or master valve control.
What warranty does Rain Bird provide for the ESP-9V4?
Rain Bird backs the ESP-9V4 with an industry-leading 5-year warranty against defects in materials and workmanship.
