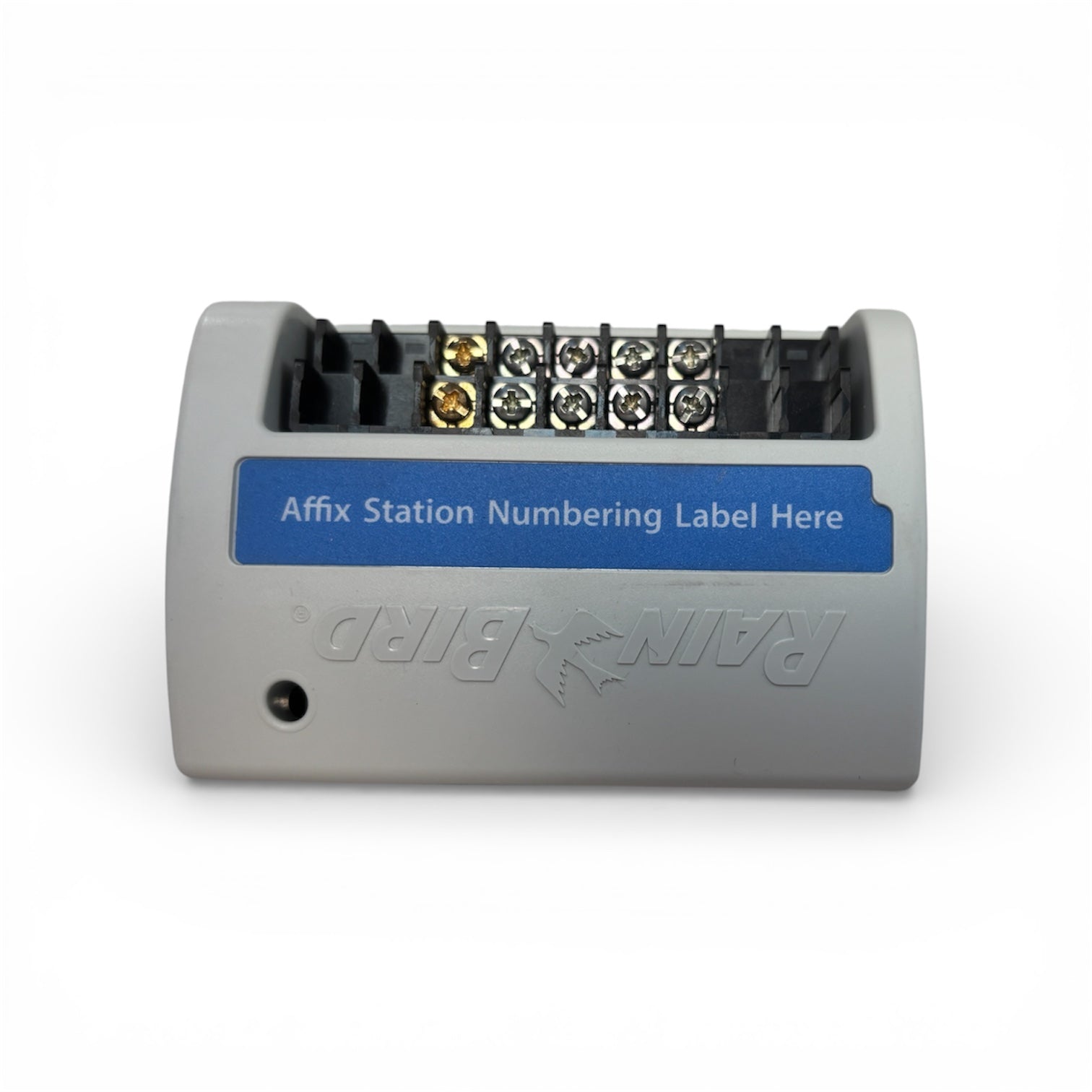

Rain Bird ESPLXMSM8 8-Station Expansion Module for ESP-LX

Rain Bird ESPLXMSM8 8-Station Expansion Module for ESP-LX

Brand: Rain Bird
Save 26%
$231.31
$170.64
SKU ESPLXMSM8

Notify me when back in stock

Increase the capacity of an ESP-LX series controller without replacing the base unit using the Rain Bird ESPLXMSM8 8-station expansion module. Designed for commercial and large residential irrigation systems, this compact module integrates directly into ESP-LXME, ESP-LXMEF and ESP-LX modular controllers to add eight additional stations while preserving the controller’s existing programming and station sequencing.

  • Adds eight stations: Expands any compatible ESP-LX controller by eight zones for broader irrigation coverage.
  • Hot-swappable installation: Install or remove the module while the controller remains powered; modules can be added in any available slot.
  • Field wiring compatibility: Integrates with ESP-LXME field wiring using screw terminal blocks for secure, serviceable connections.
  • Seamless station handling: Controller recognizes new modules and updates station numbering to avoid gaps while preserving schedules and programs.
  • Built for large systems: Ideal for commercial landscapes, sports fields, and large residential properties where incremental expansion is preferred.

When paired with an ESP-LXME/ESP-LXMEF or ESP-LX base controller, the ESPLXMSM8 maintains the controller’s standard solenoid and multi-valve capacities and supports the same programming features and sequencing logic. A module status indicator helps confirm communication with the front panel during installation. For wiring diagrams, simultaneous station limits, and detailed installation steps, follow the ESP-LXME installation and wiring guides supplied by Rain Bird.

Reviews

Frequently Asked Questions

What controllers is the ESPLXMSM8 compatible with?
The ESPLXMSM8 is designed for Rain Bird ESP-LXME, ESP-LXMEF and ESP-LX modular controllers.
Can I install the module without powering down the controller?
Yes. The module is hot-swappable and can be installed in any available slot; follow safety and grounding procedures.
Will adding this module change my existing programs or schedules?
No. The controller preserves existing programming and will prompt to accept updated station numbering when a module is added.
How should I wire the additional stations?
Use the controller’s field wiring screw terminal blocks and refer to the ESP-LXME wiring diagram for terminal assignments and wire routing.
