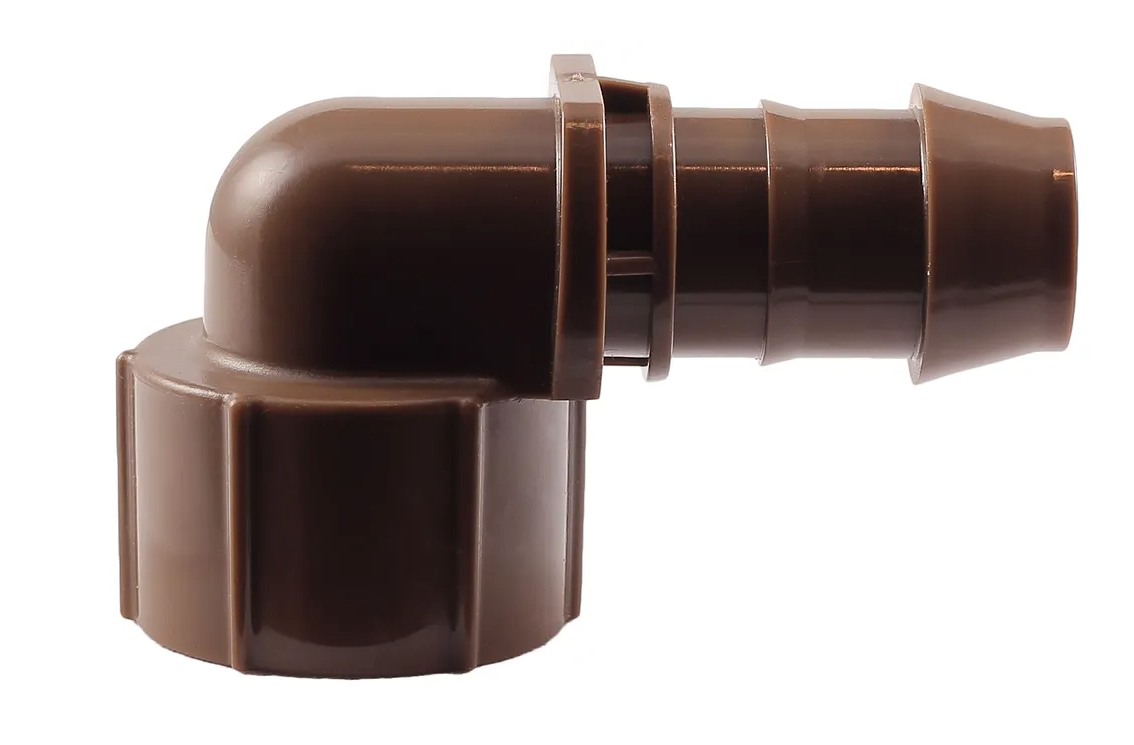

Close-up of Rain Bird XFF-FA-050 low-profile 17mm barbed elbow female adapter in earth-tone UV-resistant plastic, showing the 1/2-inch FPT inlet and barb detail.

Rain Bird XFF-FA-050 Low-Profile 17mm Barb Elbow

Brand: Rain Bird
Save 63%
$1.56
$0.57
SKU XFF-FA-050
In Stock (299)

Notify me when back in stock

Low-profile Rain Bird XFF-FA-050 elbow adapter for XF Series dripline. Designed to join 17mm barbed tubing to a 1/2" female pipe thread with a secure, low-profile connection.

  • Secure fit: High-quality barbs grab 17mm tubing for a reliable, leak-resistant connection.
  • Low profile: Compact elbow keeps fittings close to the line for discreet installation.
  • 1/2" FPT inlet: Standard half-inch female pipe thread for easy connection to valves, heads or risers.
  • Reduced insertion force: Unique barb design installs faster and with less hand fatigue than traditional barbs.
  • Durable construction: Made from UV-resistant, break-resistant plastic in earth-tone colors to blend into landscapes.
  • Compatible: Works with Rain Bird XF Series dripline — including XFD and XFS — and most 17mm OD polyethylene tubing.

Easy to install and engineered for long-term outdoor use, the XFF-FA-050 simplifies retrofit and new-install projects. For large runs use the XF insertion tool to cut labor time and effort. Operating range: 0–50 PSI (1.0–3.5 bar); clamps required if using 60 PSI (4.1 bar).

Reviews

Frequently Asked Questions

What tubing does this adapter fit?
Fits Rain Bird XF Series 17mm dripline and most 17mm OD polyethylene tubing for straightforward connections.
What is the operating pressure range?
Rated for typical dripline use: 0–50 PSI (1.0–3.5 bar). Clamps are required if using 60 PSI (4.1 bar).
How do I install the XFF-FA-050?
Push the barb into the 17mm dripline until the tube stop seats; use the XF insertion tool to reduce effort and speed installation.
What is the adapter made of and color?
Manufactured from durable, UV-resistant plastic in an earth-tone color to blend into landscapes and resist outdoor exposure.
