Baseline BL-5406-KIT Pressure biCoder Kit with Transducer

Baseline BL-5406-KIT Pressure biCoder Kit with Transducer

Brand: Baseline Inc
Save 13%
$1,039.24
$909.33
SKU BL-5406-KIT

Notify me when back in stock

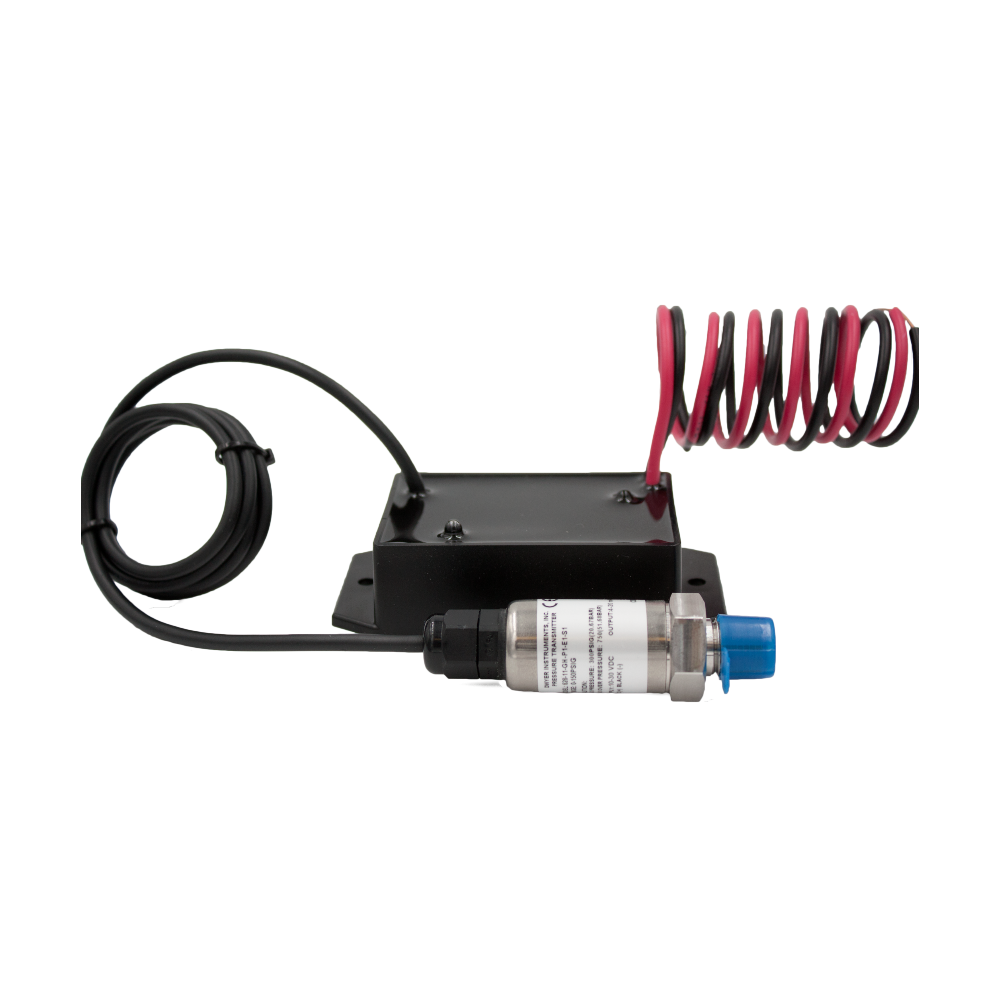

The Baseline BL-5406-KIT Pressure biCoder Kit with pressure transducer enables your BaseStation 3200 irrigation controller to read a 4-20 mA signal over two wires and act on PSI readings. When configured, the biCoder can start, stop, or pause irrigation programs and trigger safety responses to protect pumps and master valves from abnormal pressure conditions.

  • Two-wire 4-20 mA input compatible with standard pressure sensors for reliable PSI monitoring.
  • Direct integration with BaseStation 3200 to automate start/stop/pause actions based on pressure thresholds.
  • Supports automatic shutoff of pumps or master valves on high- or low-pressure alerts to prevent equipment damage.
  • Includes pressure transducer and wiring harness for straightforward installation (see installation guide).
  • Ideal for irrigation systems that require pressure-based control and remote monitoring.

Refer to the included technical specification and installation guide for wiring diagrams, installation steps, and configuration details. The BL-5406-KIT provides a practical way to add pressure-sensing automation to existing irrigation controllers and improve system safety and efficiency.

Reviews

Frequently Asked Questions

What controllers is the BL-5406-KIT compatible with out of the box?
Designed for use with the BaseStation 3200 controller; verify firmware and wiring compatibility before installation.
How does the BL-5406-KIT report pressure to the controller?
It reads a 4-20 mA signal over two wires and reports PSI values to the BaseStation 3200.
Can the biCoder shut off pumps or master valves automatically?
Yes. When configured with a pressure sensor, it can trigger automatic shutoff on high or low pressure alerts.
Where can I find installation and technical documentation for the BL-5406-KIT?
Refer to the included installation guide and technical specification for wiring diagrams, configuration steps, and safety notes.
